Front Door Skin Panel — 2016 workshop reference 2318

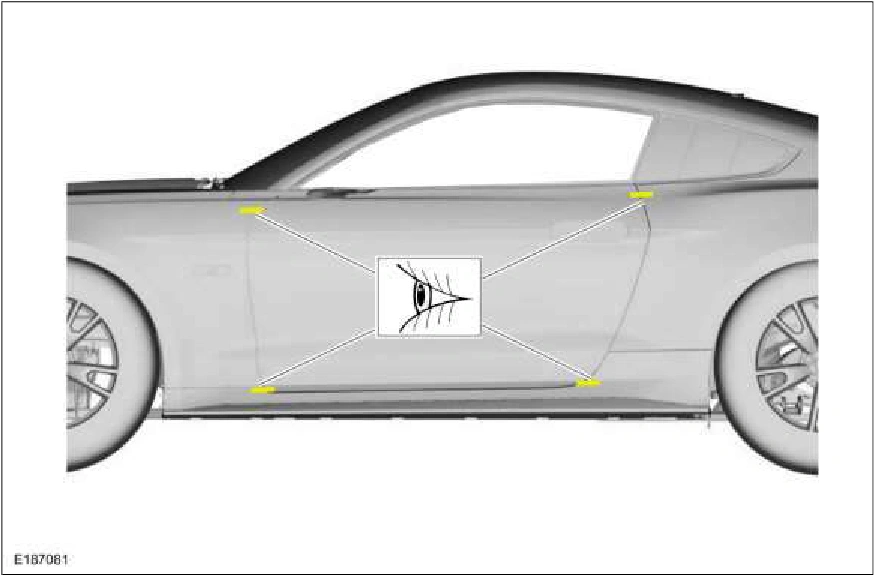

Front Door Skin Panel — original illustration 1, reference 2318Original colors & callouts · Select to enlarge

9. Carefully open the door and tack weld to lock panel in place. Use the General Equipment: MIG/MAG Welding Equipment

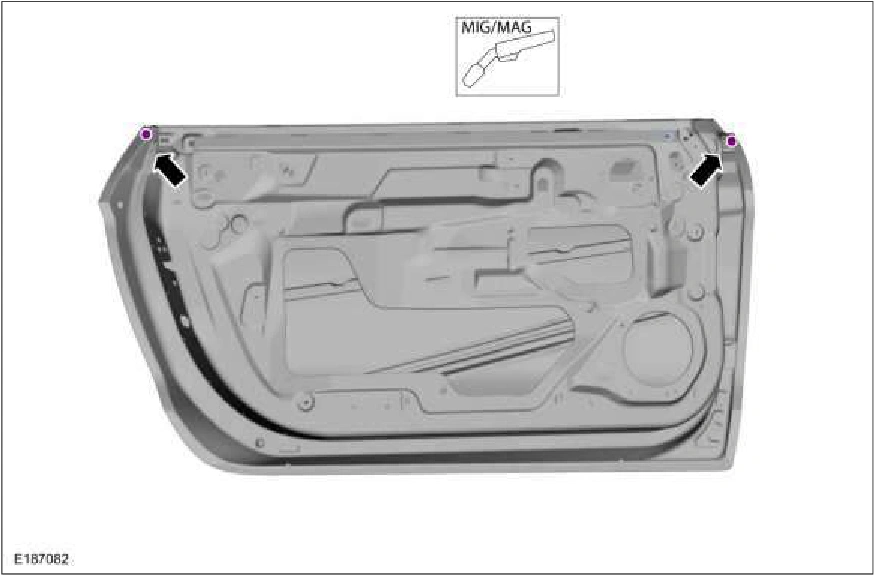

Front Door Skin Panel — original illustration 2, reference 2318Original colors & callouts · Select to enlarge

10. Remove the door from the vehicle.

Source reference 2318

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
