Front Door Skin Panel — 2016 workshop reference 2321

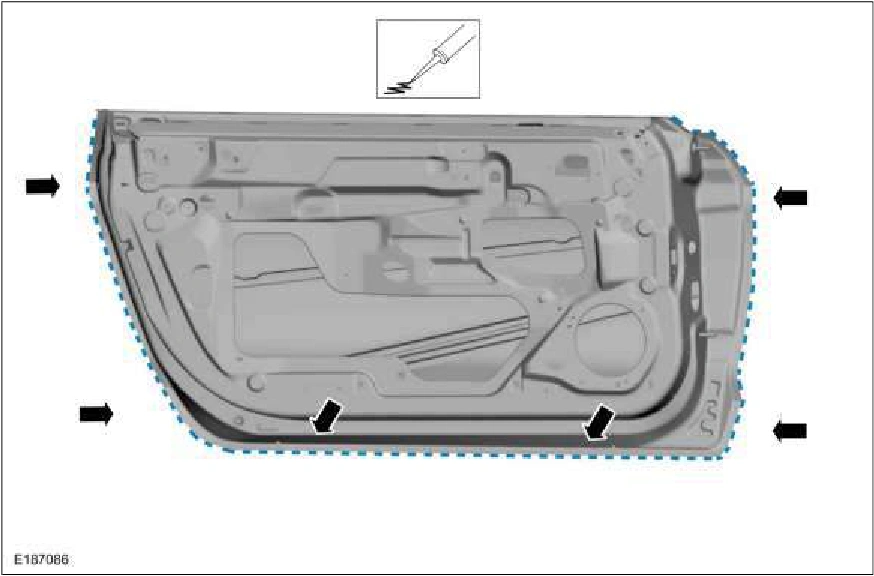

Front Door Skin Panel — original illustration 1, reference 2321Original colors & callouts · Select to enlarge

15. Refinish the door shell flange using a Ford approved paint system.

16. Install the door. Refer to: Front Door (501-03 Body Closures, Removal and Installation).

17. Sand and refinish the exterior repair area using a Ford approved paint system.

18. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

19. Install the following items:

1. Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

2. Refer to: Exterior Mirror (501-09 Rear View Mirrors, Removal and Installation).

3. Refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

4. Refer to: Front Door Upper Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
