Rocker Panel — 2016 workshop reference 2324

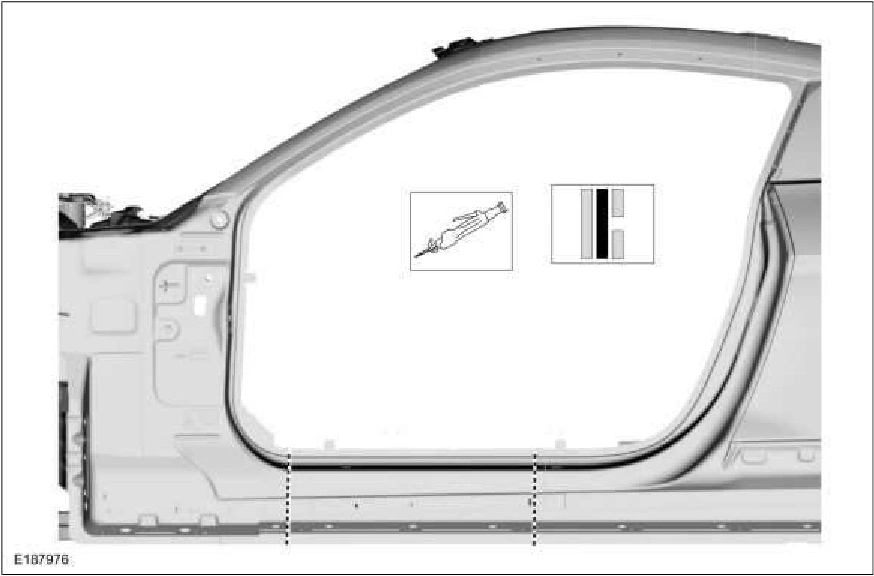

Rocker Panel — original illustration 1, reference 2324Original colors & callouts · Select to enlarge

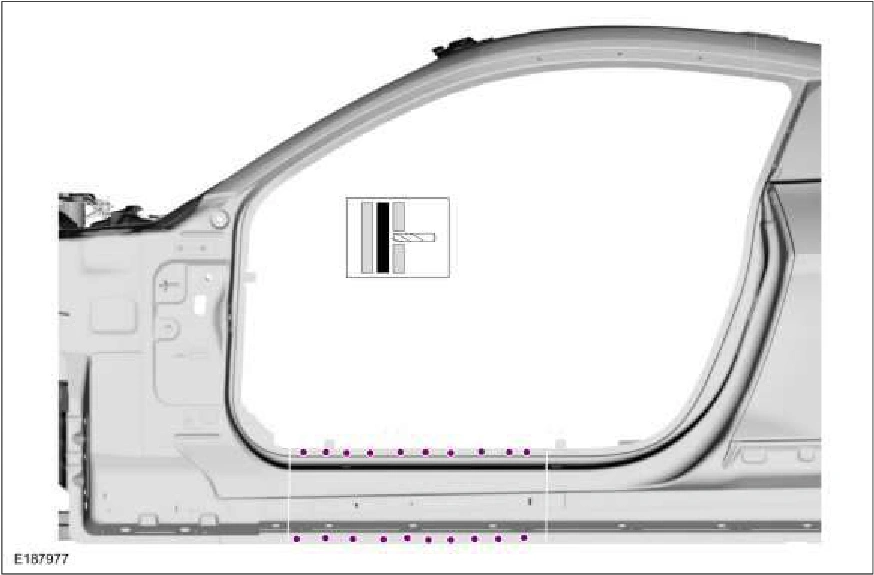

6. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit

Rocker Panel — original illustration 2, reference 2324Original colors & callouts · Select to enlarge

7. Remove the rocker panel section.
