Rocker Panel — 2016 workshop reference 2325

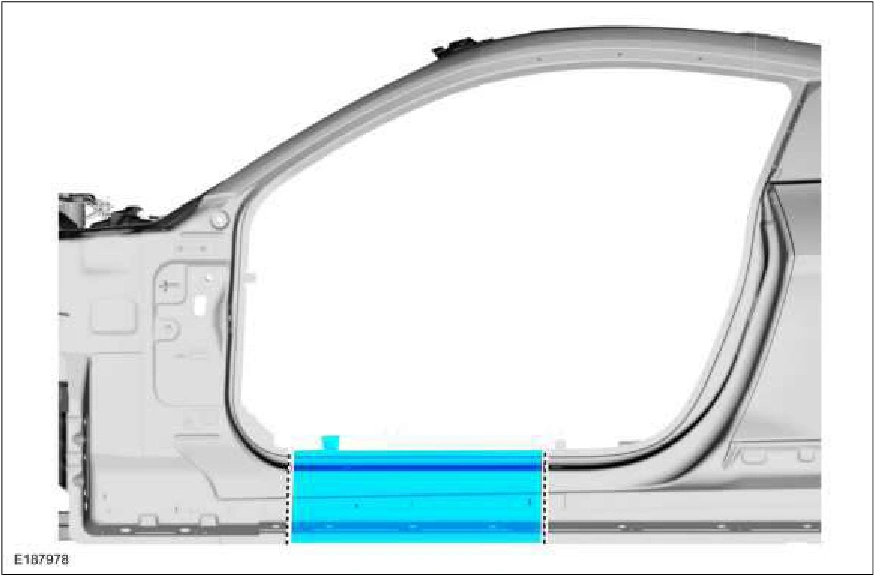

Rocker Panel — original illustration 1, reference 2325Original colors & callouts · Select to enlarge

Installation

1. Cut section from the replacement part. Use the General Equipment: Air Body Saw

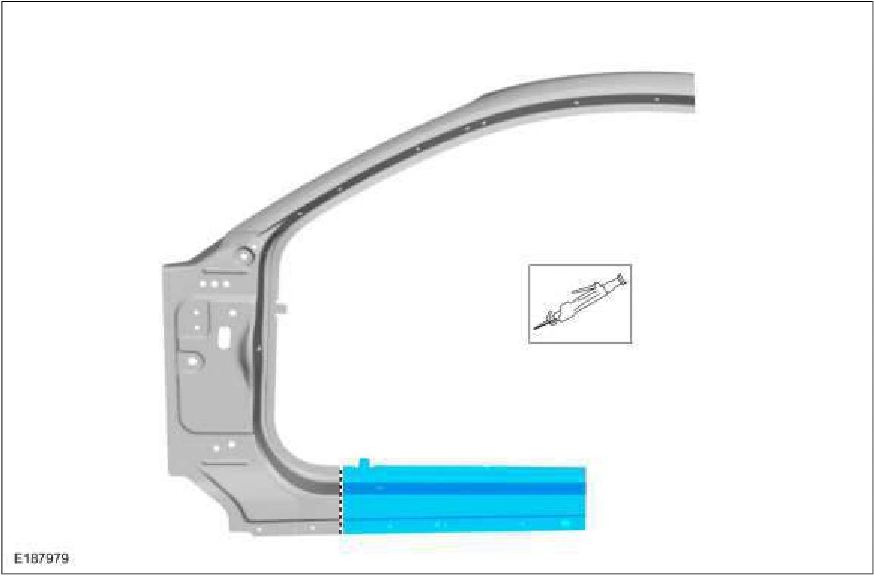

Rocker Panel — original illustration 2, reference 2325Original colors & callouts · Select to enlarge

2. Install and seam weld the rocker panel section. Use the General Equipment: MIG/MAG Welding Equipment

Source reference 2325

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
