Rocker Panel Inner Reinforcement

501-29 Side Panel Sheet Metal Repairs 2016 Mustang

Removal and Installation Procedure revision date: 01/28/2015

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment

Hot Air Gun

8 mm Drill Bit

MIG/MAG Welding Equipment

Spot Weld Drill Bit

Locking Pliers

Materials

Name	Specification
Metal Bonding Adhesive TA-1, 3M™ 08115, Fusor® 108B	-
Seam Sealer TA-2-B	-

Removal

1. If required, dimensionally restore vehicle to pre-accident condition. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

NOTE: The rocker panel inner reinforcement is made of martensitic steel and cannot be sectioned. It must be replaced at factory seams.

Coupe shown, convertible is similar.

NOTE: LH side shown, RH side similar.

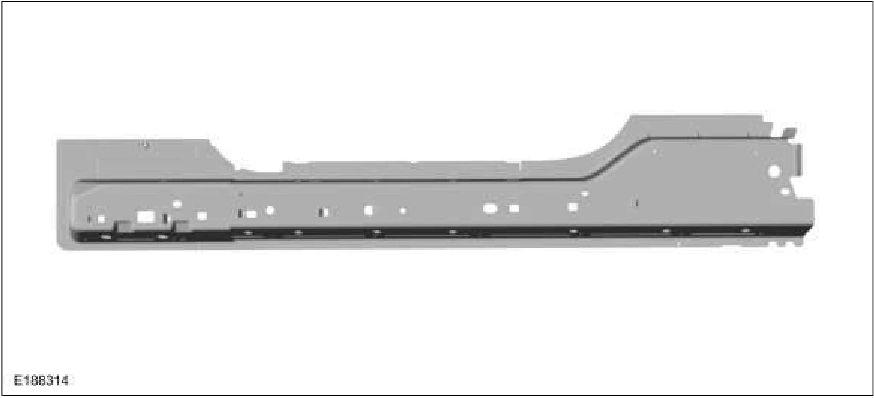

2. Available service part.

Rocker Panel Inner Reinforcement — original illustration 1, reference 2328Original colors & callouts · Select to enlarge

3. Remove the following items:

1. Refer to: Quarter Panel - Coupe (501-30 Rear End Sheet Metal Repairs, Removal and Installation).
