Rocker Panel Inner Reinforcement — 2016 workshop reference 2329

Refer to: Quarter Panel - Convertible (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

2. Refer to: B-Pillar and Reinforcement - Coupe (501-29 Side Panel Sheet Metal Repairs, Removal and Installation). Refer to: B-Pillar and Reinforcement - Convertible (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).

3. Refer to: A-Pillar Trim Panel - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation). Refer to: A-Pillar Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).

4. Refer to: A-Pillar Outer Panel Section and Reinforcement (501-29 Side Panel Sheet Metal Repairs, Removal and Installation).

4. Position the carpet and wiring harness away from the repair area.

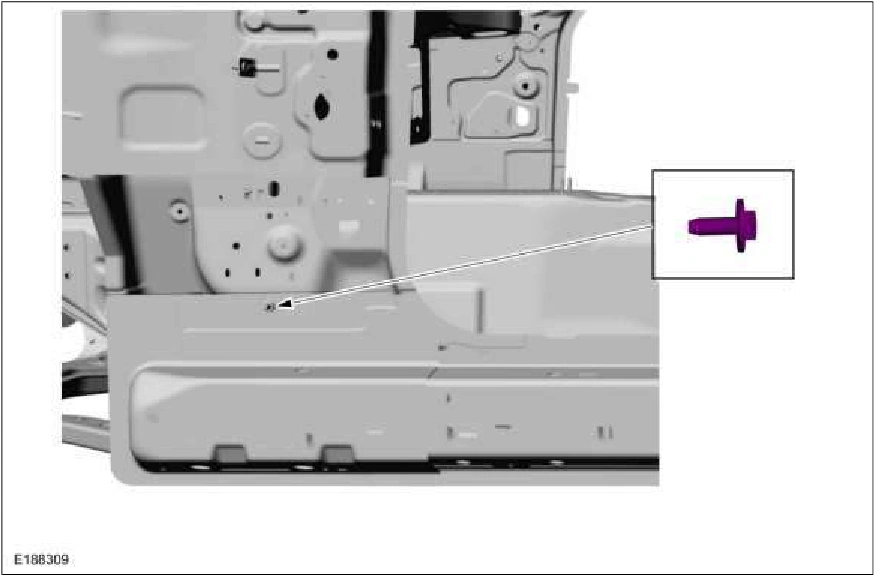

5. Remove the bolt from the inner rocker panel reinforcement.

Rocker Panel Inner Reinforcement — original illustration 1, reference 2329Original colors & callouts · Select to enlarge

6. Remove the spot welds from the rocker panel. Use the General Equipment: Spot Weld Drill Bit
