Rocker Panel Inner Reinforcement — 2016 workshop reference 2330

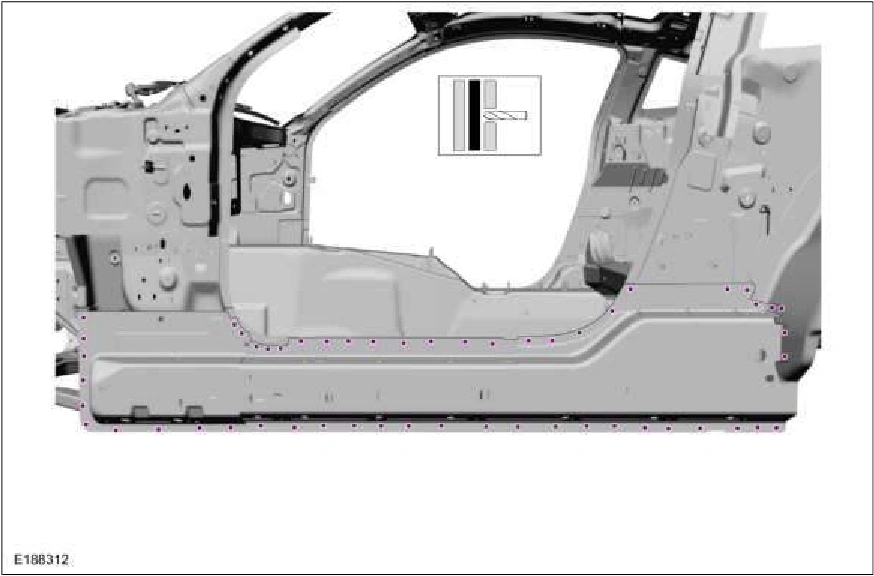

Rocker Panel Inner Reinforcement — original illustration 1, reference 2330Original colors & callouts · Select to enlarge

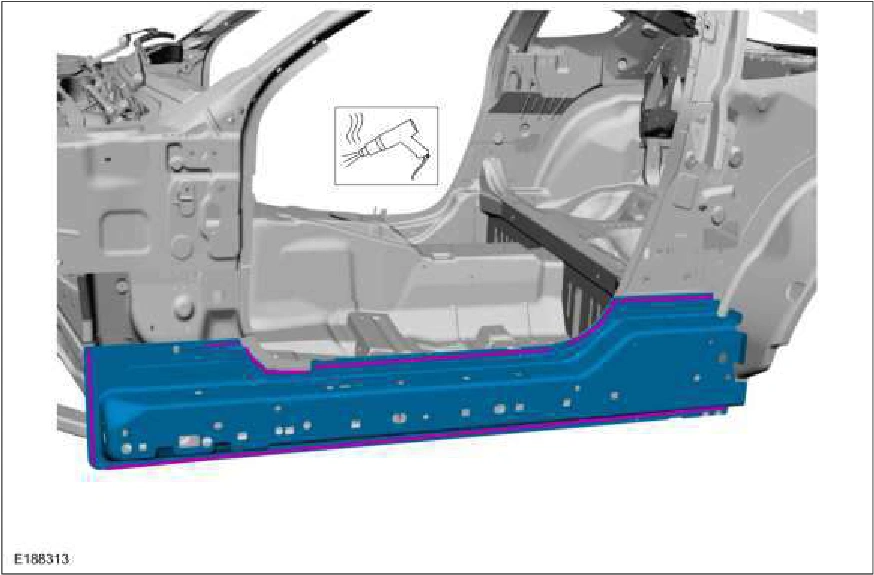

7. Remove the rocker panel assembly. Use the General Equipment: Hot Air Gun

Rocker Panel Inner Reinforcement — original illustration 2, reference 2330Original colors & callouts · Select to enlarge

Installation

NOTE: The rocker panel inner reinforcement is made of martensitic steel and cannot be sectioned. It must be replaced at factory seams.

NOTE: LH side shown, RH side similar.

1. Drill holes for plug welding in the replacement rocker panel. Use the General Equipment: 8 mm Drill Bit
