Rocker Panel Inner Reinforcement — 2016 workshop reference 2332

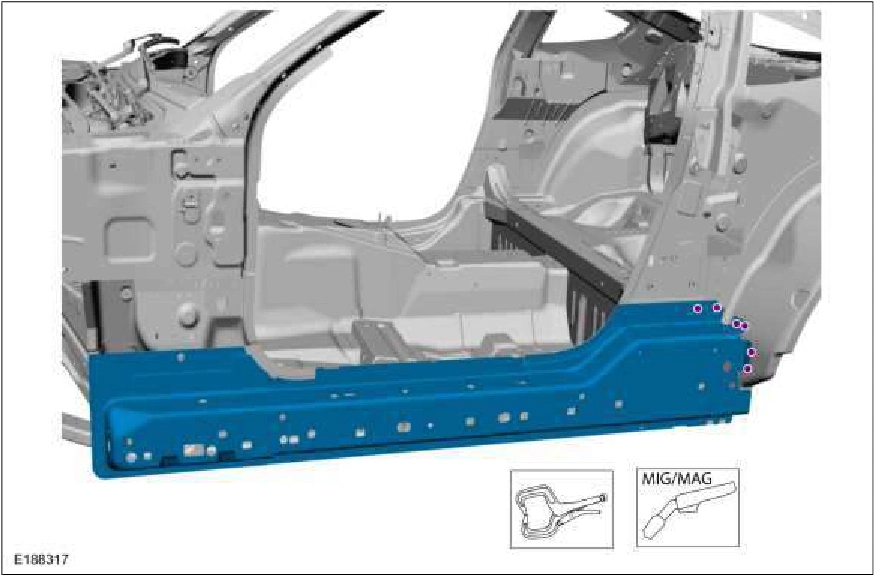

Rocker Panel Inner Reinforcement — original illustration 1, reference 2332Original colors & callouts · Select to enlarge

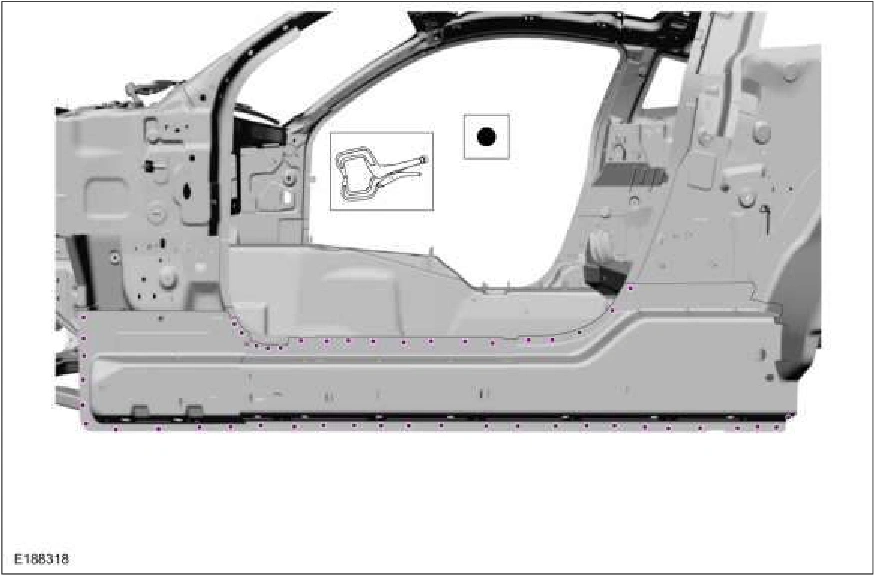

4. Resistance spot weld the rocker panel. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

Rocker Panel Inner Reinforcement — original illustration 2, reference 2332Original colors & callouts · Select to enlarge

5. Install the bolt in the rocker panel reinforcement. Torque : 22 lb.ft (30 Nm)
