Rocker Panel Inner Reinforcement — 2016 workshop reference 2331

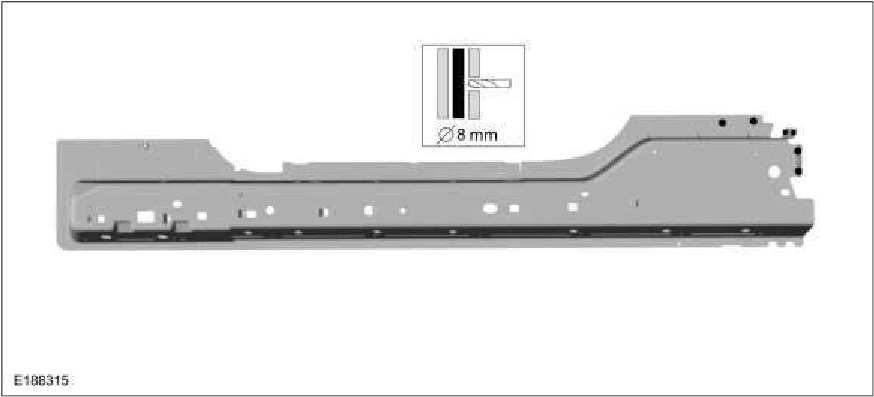

Rocker Panel Inner Reinforcement — original illustration 1, reference 2331Original colors & callouts · Select to enlarge

2. Apply adhesive to the flange area of the inner reinforcement structure. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B

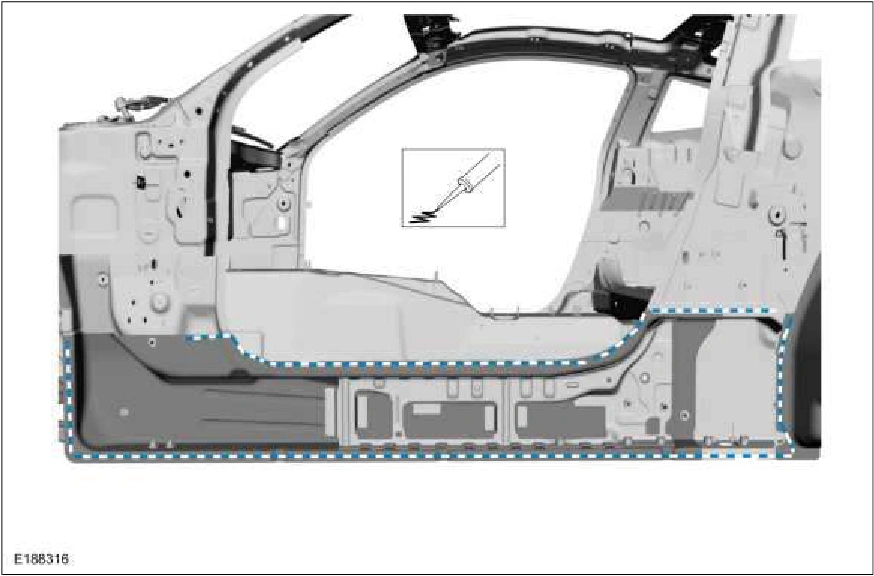

Rocker Panel Inner Reinforcement — original illustration 2, reference 2331Original colors & callouts · Select to enlarge

3. Install the rocker panel assembly and MIG weld. Use the General Equipment: Locking Pliers Use the General Equipment: MIG/MAG Welding Equipment
