Rocker Panel — 2016 workshop reference 2326

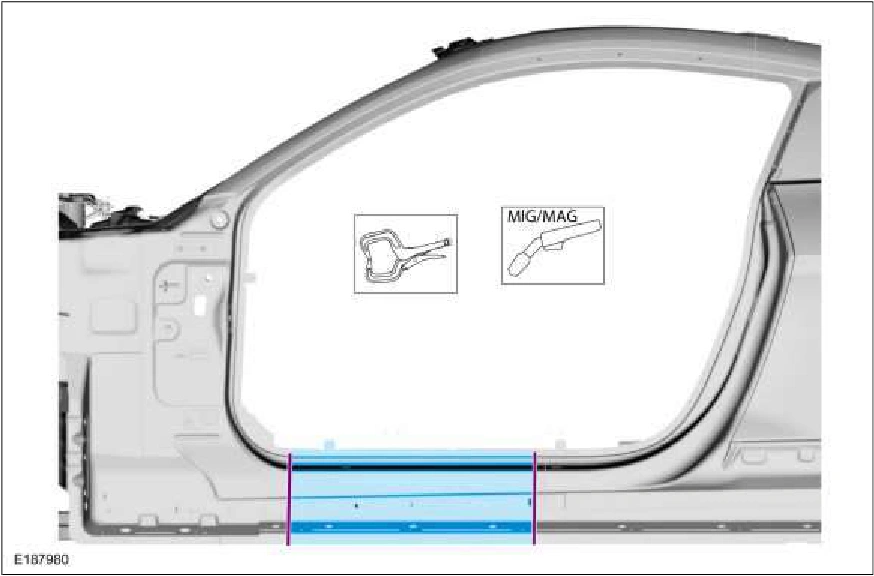

Rocker Panel — original illustration 1, reference 2326Original colors & callouts · Select to enlarge

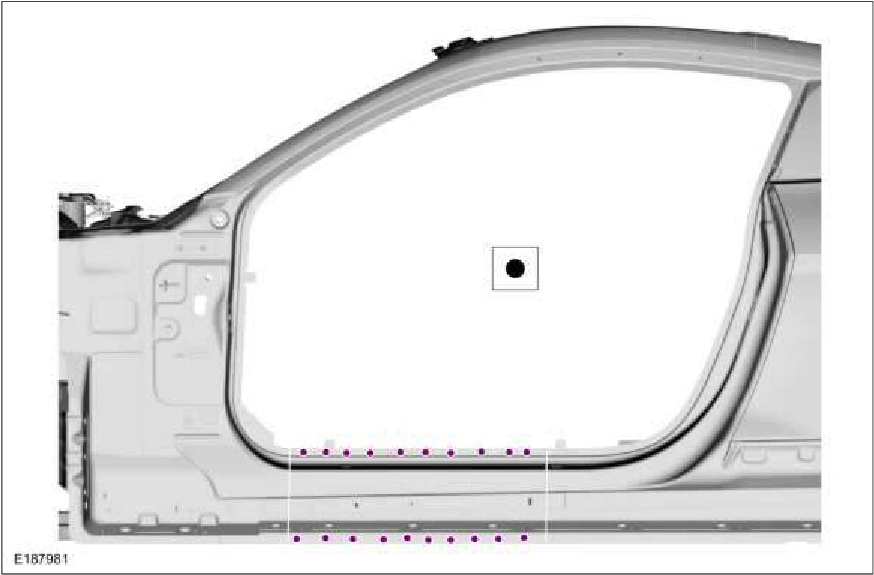

3. Resistance spot weld the panel. Use the General Equipment: Resistance Spotwelding Equipment

Rocker Panel — original illustration 2, reference 2326Original colors & callouts · Select to enlarge

4. Finish the repair area using typical metal finishing techniques.

5. Prime the repair area using a Ford approved paint system.

6. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

7. Refinish using a Ford approved paint system.

8. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
