Front Door Skin Panel — 2016 workshop reference 2320

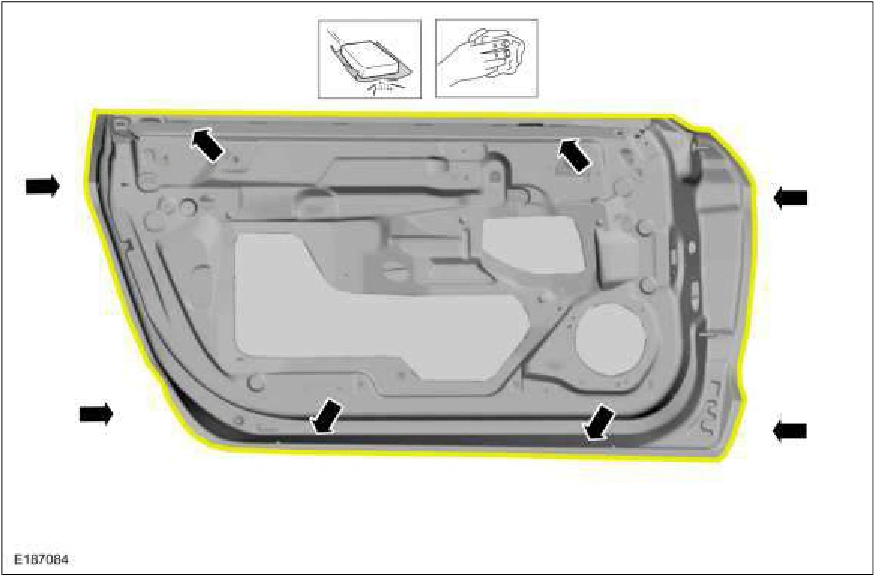

Front Door Skin Panel — original illustration 1, reference 2320Original colors & callouts · Select to enlarge

13. Apply a Ford approved primer to the flange area.

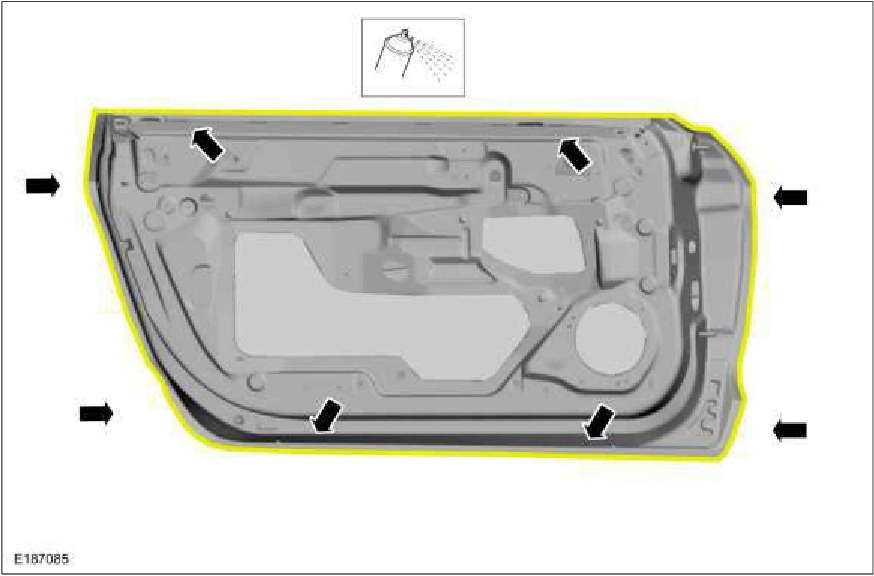

Front Door Skin Panel — original illustration 2, reference 2320Original colors & callouts · Select to enlarge

14. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

Source reference 2320
