Front Door Skin Panel — 2016 workshop reference 2319

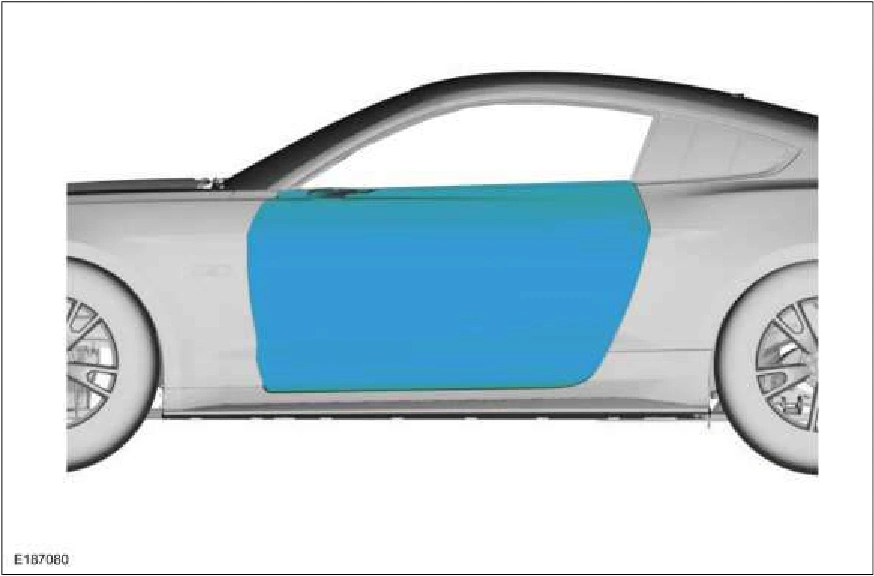

Front Door Skin Panel — original illustration 1, reference 2319Original colors & callouts · Select to enlarge

11. NOTE: Smooth any residual adhesive squeeze-out in to the seam to act as a sealer.

Complete the flanging process.

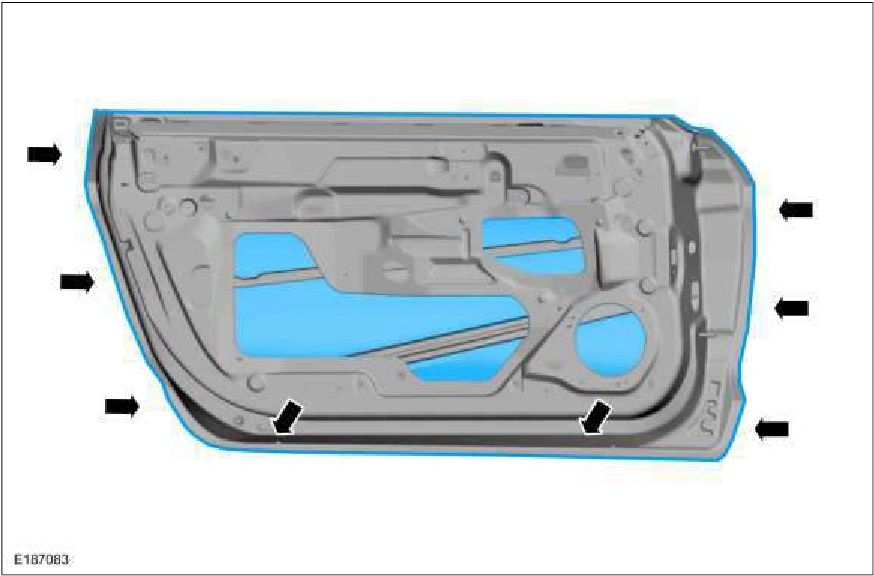

Front Door Skin Panel — original illustration 2, reference 2319Original colors & callouts · Select to enlarge

12. Remove all foreign material.
