Front Door Skin Panel — 2016 workshop reference 2316

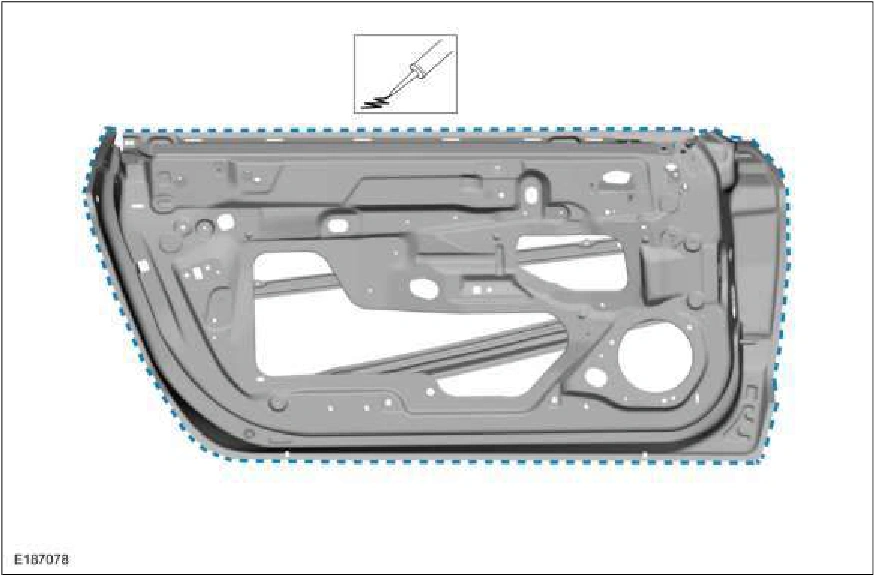

Front Door Skin Panel — original illustration 1, reference 2316Original colors & callouts · Select to enlarge

5. Apply anti-flutter NVH expanding foam as indicated. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

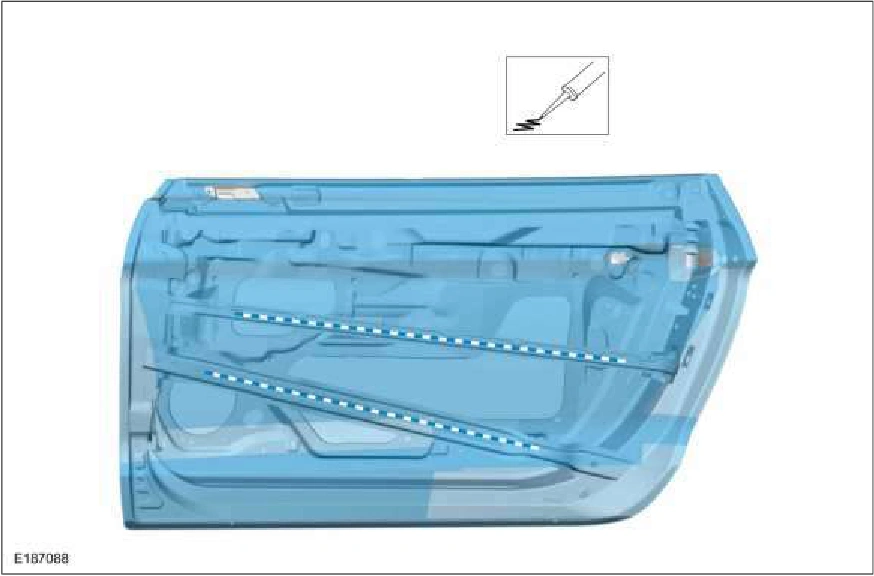

Front Door Skin Panel — original illustration 2, reference 2316Original colors & callouts · Select to enlarge

6. Install the outer door panel and partially crimp the flange. Use the General Equipment: Locking Pliers

Source reference 2316

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
