Front Door Skin Panel — 2016 workshop reference 2314

Use the General Equipment: Hot Air Gun

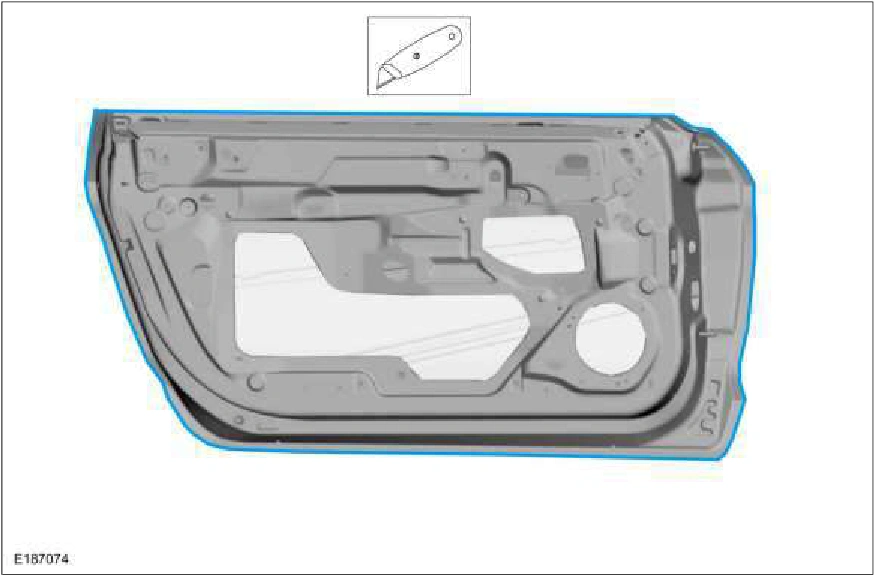

Front Door Skin Panel — original illustration 1, reference 2314Original colors & callouts · Select to enlarge

Installation

1. Remove all adhesive and foreign materials from the door shell to outer door panel mating surfaces.

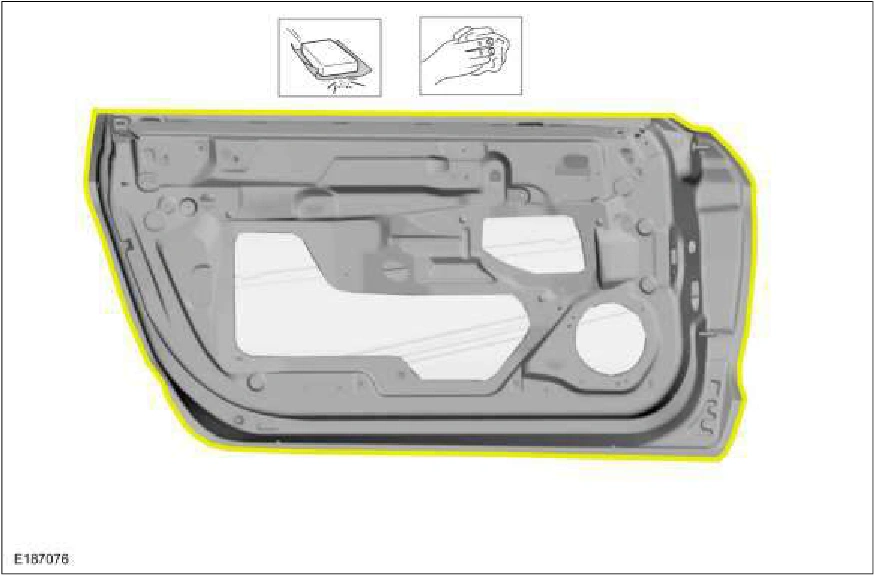

Front Door Skin Panel — original illustration 2, reference 2314Original colors & callouts · Select to enlarge

2. Remove the e-coat from the mating surface.
