Front Door Skin Panel

501-29 Side Panel Sheet Metal Repairs 2016 Mustang

Removal and Installation Procedure revision date: 01/12/2015

Special Tool(s) / General Equipment

Grinder

Hot Air Gun

Knife

MIG/MAG Welding Equipment

Locking Pliers

Materials

Name	Specification
Metal Bonding Adhesive TA-1, 3M™ 08115, Fusor® 108B	-
Seam Sealer TA-2-B	-
Fusor® Flexible Foam Repair 3M™ 08463, Fusor® 121	-

Removal

NOTE: LH side shown, RH side similar.

1. Inspect the upper and lower door hinges for wear or damage, install new or rebuild as necessary.

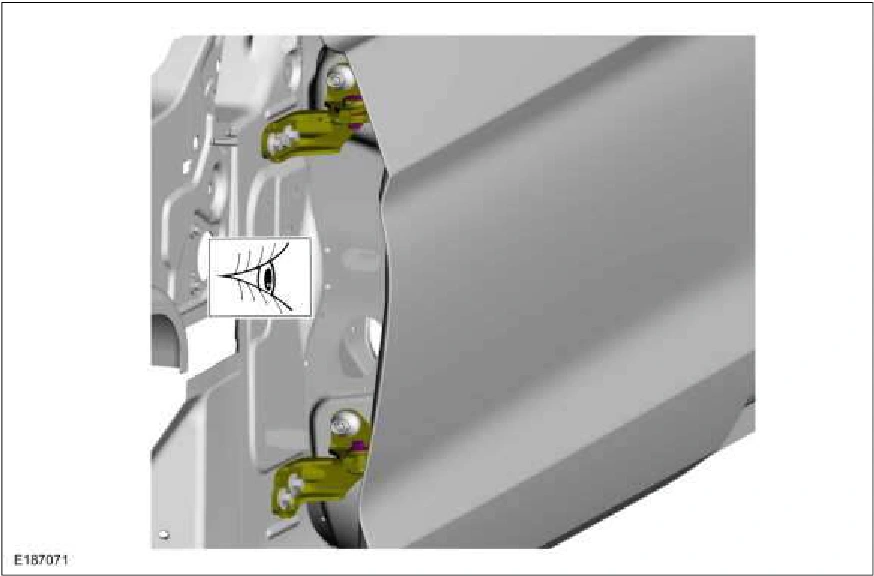

Front Door Skin Panel — original illustration 1, reference 2312Original colors & callouts · Select to enlarge

2. Remove the following items:

1. Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

Source reference 2312
