B-Pillar and Reinforcement - Coupe

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,296 / 6,619HTML edition

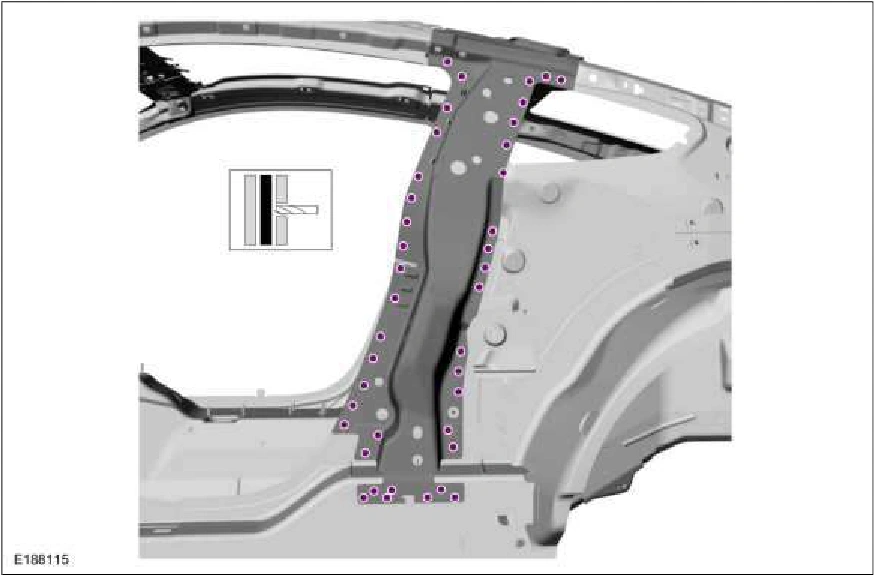

B-Pillar and Reinforcement - Coupe — original illustration 1, reference 2296Original colors & callouts · Select to enlarge

7. Drill out the spot welds from the rear roof reinforcement on both sides. Use the General Equipment: Spot Weld Drill Bit

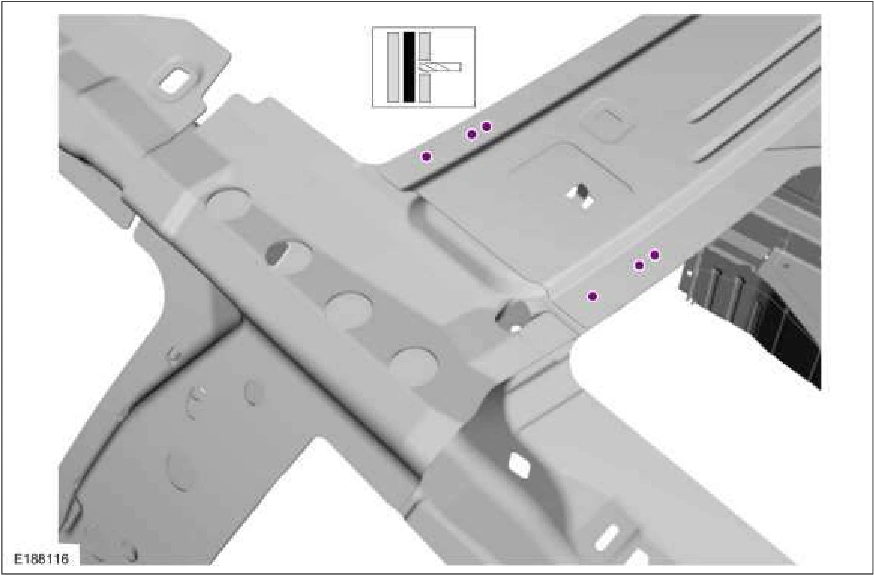

B-Pillar and Reinforcement - Coupe — original illustration 2, reference 2296Original colors & callouts · Select to enlarge

8. Remove the rear roof reinforcement assembly.

Source reference 2296
