Engine Mount LH — 2016 workshop reference 232

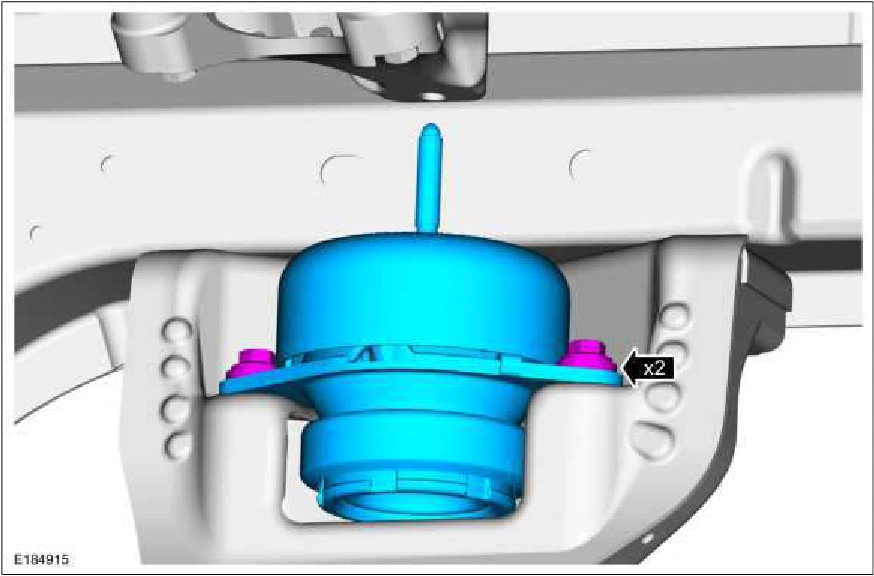

Engine Mount LH — original illustration 1, reference 232Original colors & callouts · Select to enlarge

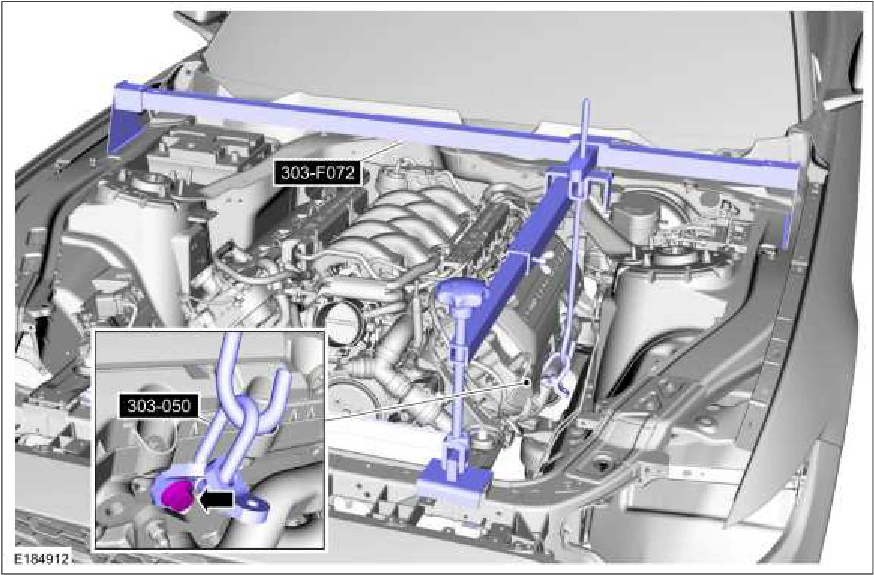

2. Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.

Engine Mount LH — original illustration 2, reference 232Original colors & callouts · Select to enlarge

3. Install the RH engine mount nut. Torque : 46 lb.ft (63 Nm)
