Engine Mount LH — 2016 workshop reference 230

Engine Mount LH — original illustration 1, reference 230Original colors & callouts · Select to enlarge

8. Remove the RH engine mount nut.

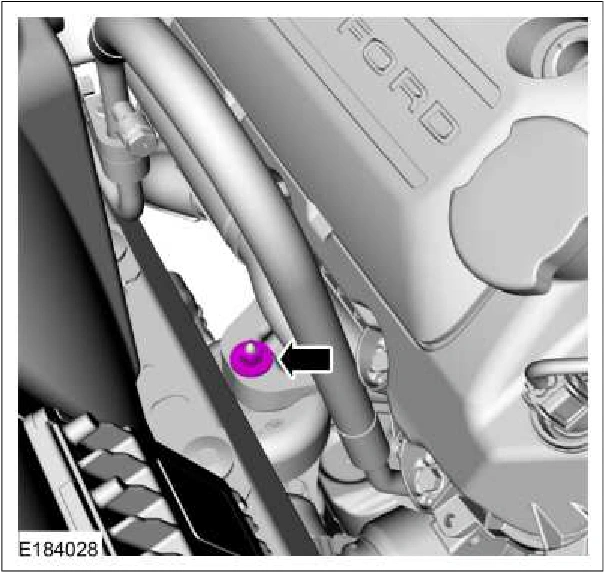

Engine Mount LH — original illustration 2, reference 230Original colors & callouts · Select to enlarge

9. NOTICE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs

should be positioned on the body structure. Failure to follow these instructions may result in body damage.

Install the special tools and raise the engine 50 mm (2 inch). Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-050 (T70P-6000) Lifting Bracket, Engine.

Source reference 230
