2016 workshop · Engine

Engine Mount LH

303-01C Engine - 5.0L

2016 Mustang5.0LReference 233 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine Mount LH — original illustration 1, reference 233Original colors & callouts · Select to enlarge

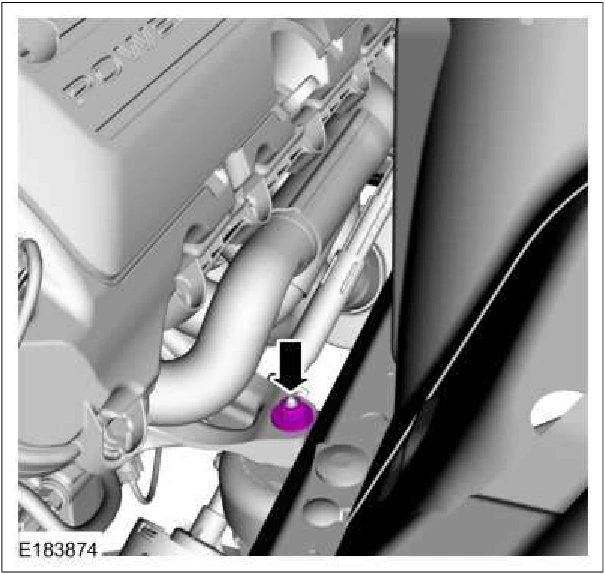

4. Install the LH engine mount nut. Torque : 46 lb.ft (63 Nm)

Engine Mount LH — original illustration 2, reference 233Original colors & callouts · Select to enlarge

5. Install the following items:

1. Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT

V8 (308kW/418PS), Removal and Installation).

2. Refer to: Air Cleaner Outlet Pipe (303-12C Intake Air Distribution and Filtering - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

6. Install the radiator top shield and the retainers.
