Engine Mount LH — 2016 workshop reference 231

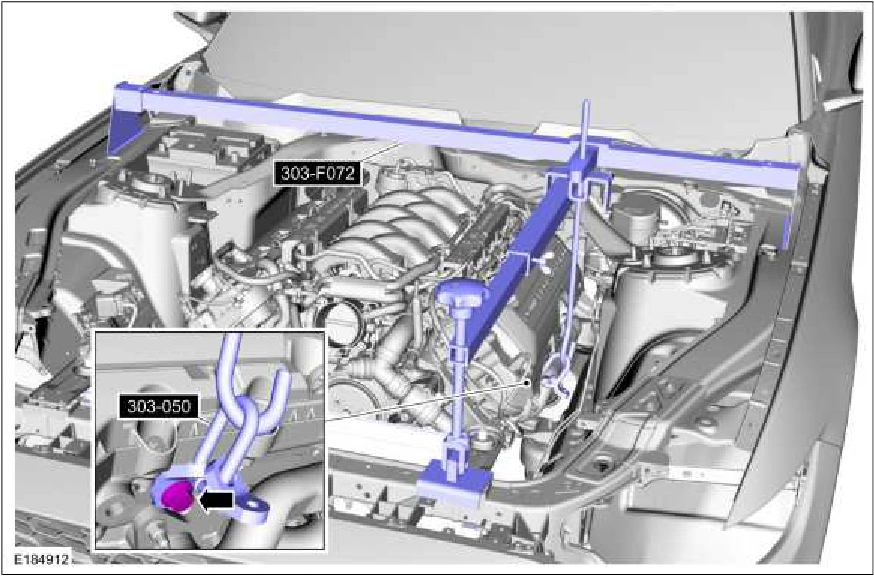

Engine Mount LH — original illustration 1, reference 231Original colors & callouts · Select to enlarge

10. Remove the bolts and the engine mount.

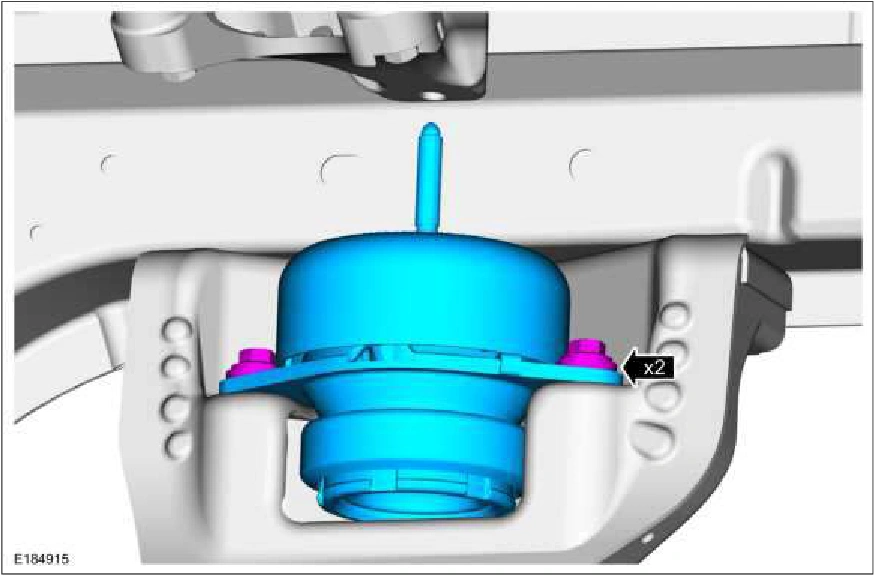

Engine Mount LH — original illustration 2, reference 231Original colors & callouts · Select to enlarge

Installation

1. Install the engine mount and the bolts. Torque : 52 lb.ft (70 Nm)
