Quarter Panel - Convertible — 2016 workshop reference 2353

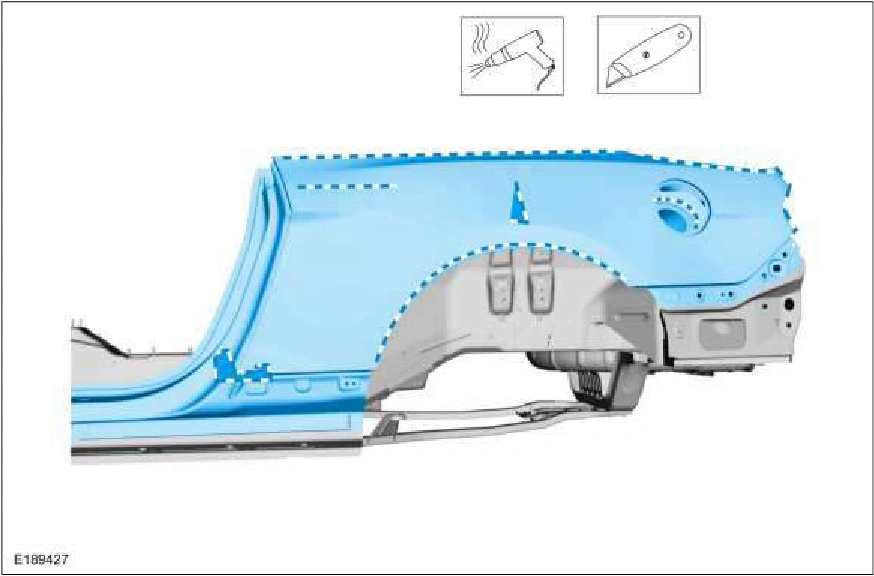

Quarter Panel - Convertible — original illustration 1, reference 2353Original colors & callouts · Select to enlarge

Installation

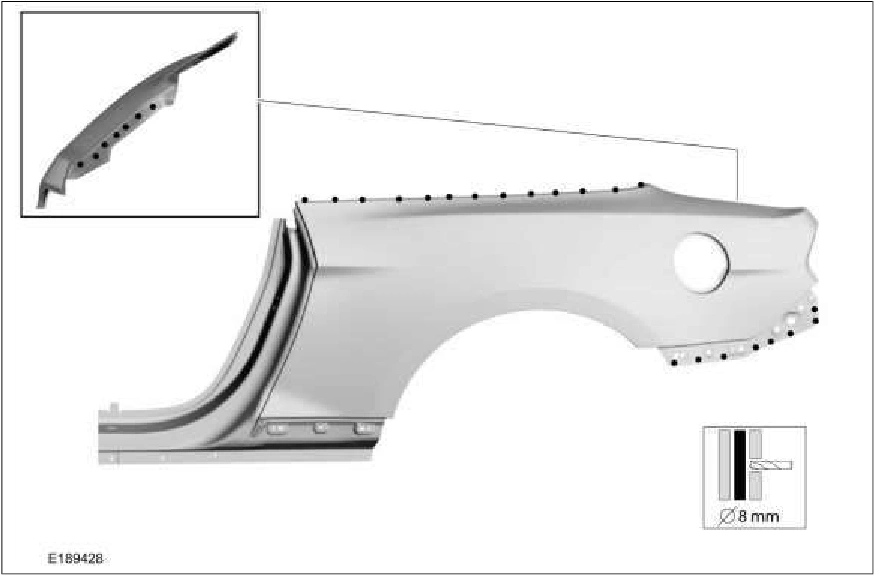

1. Drill holes in the replacement panel for plug welding. Use the General Equipment: 8 mm Drill Bit

Quarter Panel - Convertible — original illustration 2, reference 2353Original colors & callouts · Select to enlarge

2. Apply NVH expanding foam and metal bonding adhesive to indicated areas. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121
