Quarter Panel - Convertible — 2016 workshop reference 2354

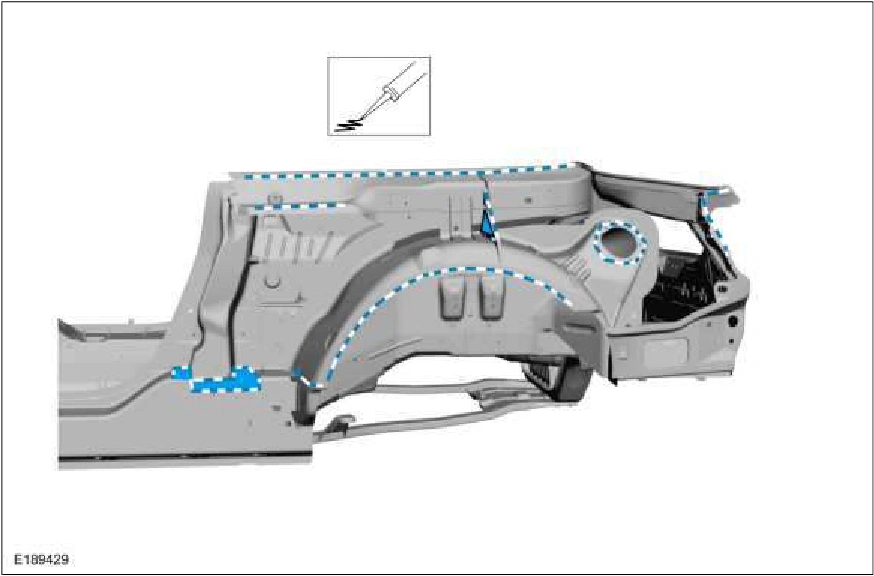

Quarter Panel - Convertible — original illustration 1, reference 2354Original colors & callouts · Select to enlarge

3. Install the quarter panel and seam weld. Use the General Equipment: Locking Pliers Use the General Equipment: MIG/MAG Welding Equipment

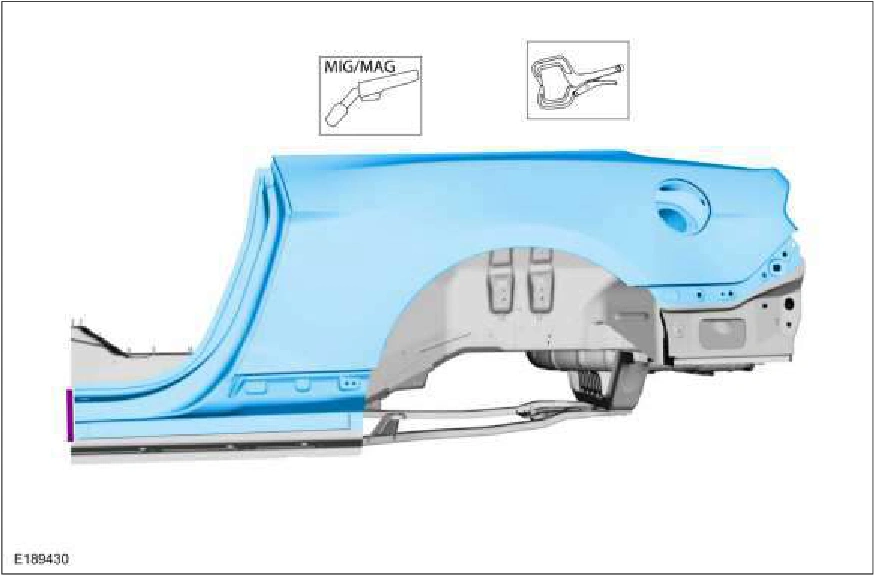

Quarter Panel - Convertible — original illustration 2, reference 2354Original colors & callouts · Select to enlarge

4. Weld the panel at the door opening. Use the General Equipment: Locking Pliers Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Resistance Spotwelding Equipment
