Quarter Panel - Convertible — 2016 workshop reference 2355

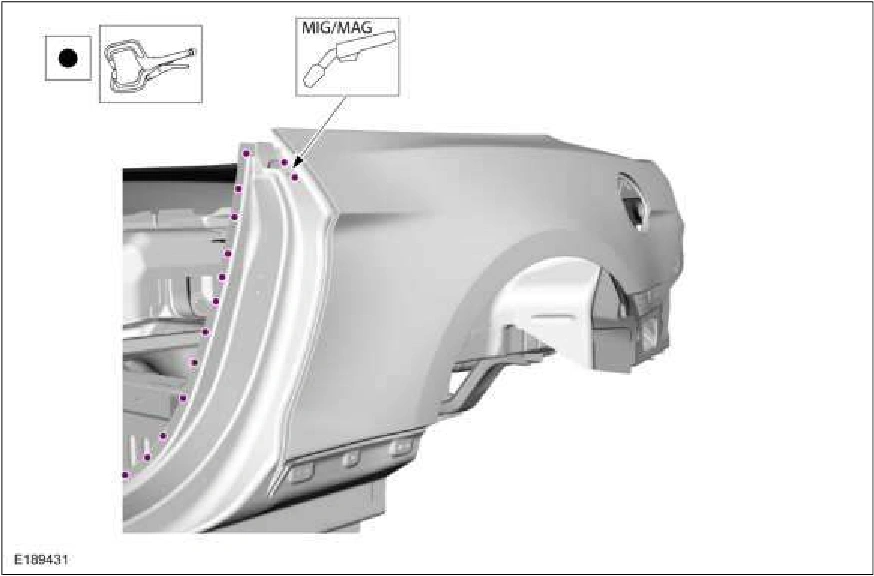

Quarter Panel - Convertible — original illustration 1, reference 2355Original colors & callouts · Select to enlarge

5. MIG weld the panel along flange areas. Use the General Equipment: MIG/MAG Welding Equipment

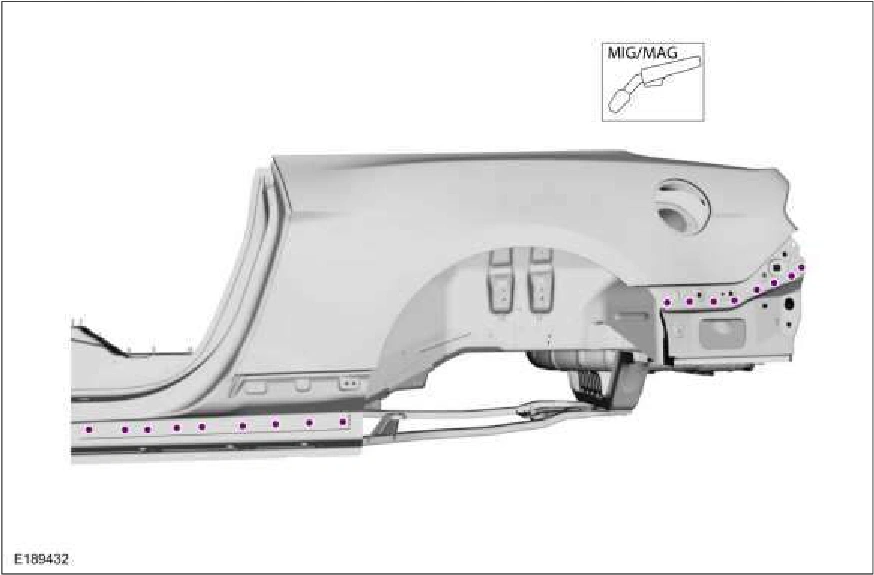

Quarter Panel - Convertible — original illustration 2, reference 2355Original colors & callouts · Select to enlarge

6. Weld the panel along upper flange areas. Use the General Equipment: Locking Pliers Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Resistance Spotwelding Equipment

Source reference 2355
