2016 workshop · Body & Paint

Rear Floor Panel

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,358 / 6,619HTML edition
← Chapter contentsProcedure contents

(308kW/418PS), Removal and Installation).

5. Refer to: Back Panel and Reinforcement (501-30 Rear End Sheet Metal Repairs, Removal and Installation).

6. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

7.

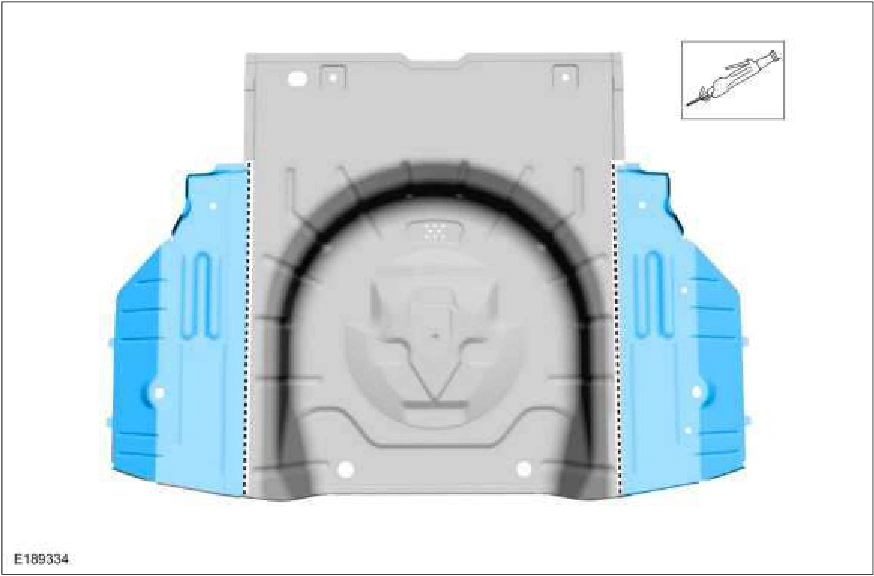

4. NOTE: Overview

Possible sectioning cut points depending on extent of damage.

Rear Floor Panel — original illustration 1, reference 2358Original colors & callouts · Select to enlarge

5. NOTE: Convertible only.

Drill out the spot welds on the crossmember. Use the General Equipment: Spot Weld Drill Bit
