Rear Floor Panel — 2016 workshop reference 2359

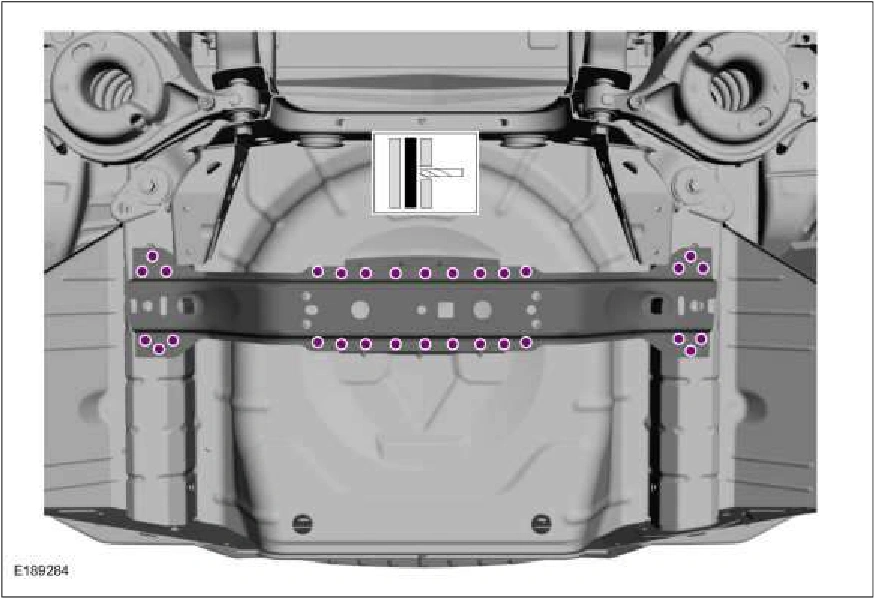

Rear Floor Panel — original illustration 1, reference 2359Original colors & callouts · Select to enlarge

6. NOTE: Convertible only.

Remove the crossmember.

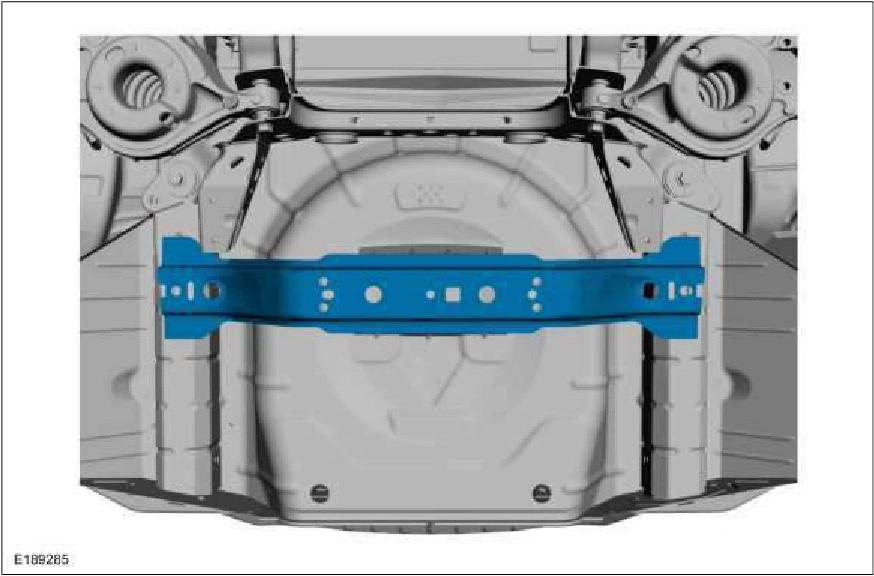

Rear Floor Panel — original illustration 2, reference 2359Original colors & callouts · Select to enlarge

7. NOTE: Heat may be applied, not to exceed 170°C to aid in softening the NVH (noise, vibration and harshness) mastic material.

Remove the NVH mastic material. Use the General Equipment: Hot Air Gun Use the General Equipment: Scraper for Straight Edges
