Rear Floor Panel

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,362 / 6,619HTML edition
← Chapter contentsProcedure contents

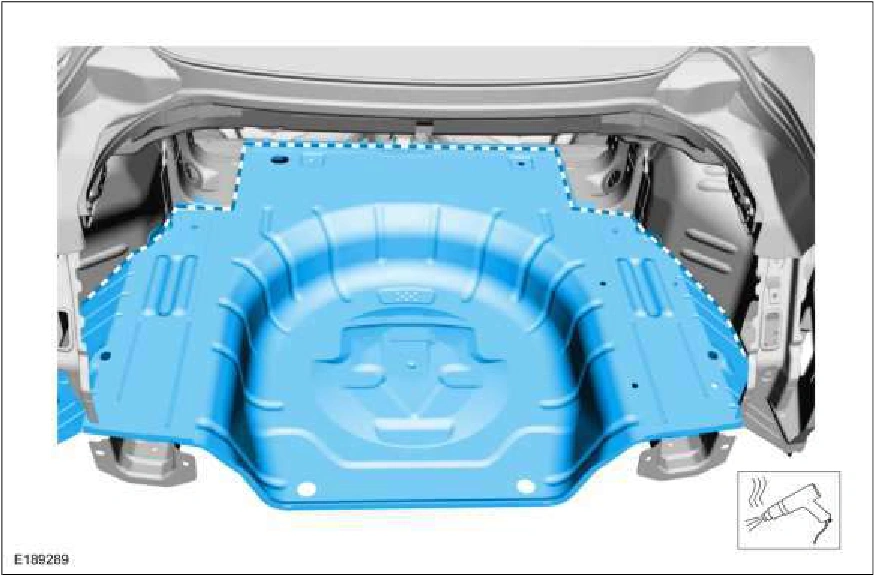

Rear Floor Panel — original illustration 1, reference 2362Original colors & callouts · Select to enlarge

Installation

1. Refer to: Joining Techniques (501-25 Body Repairs - General Information, General Procedures).

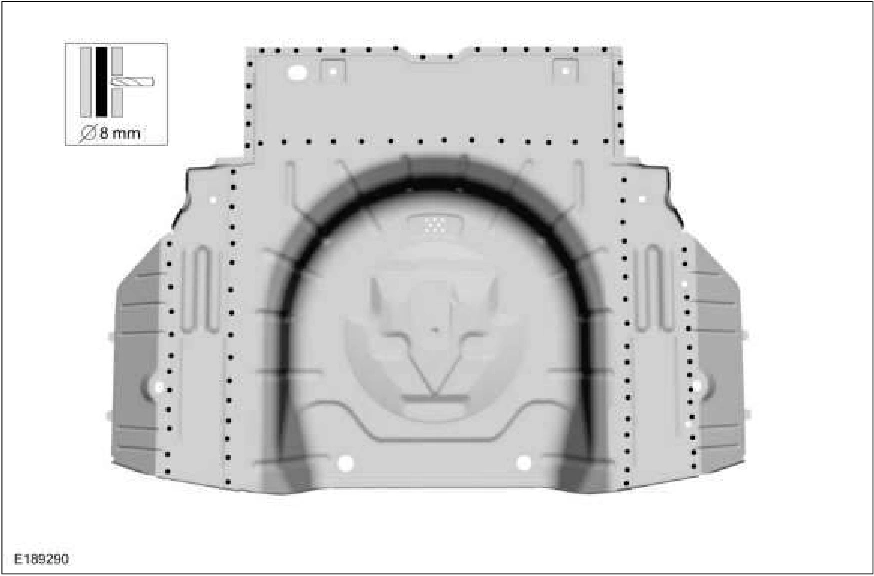

2. Drill holes in the replacement panel for plug welding. Use the General Equipment: 8 mm Drill Bit

Rear Floor Panel — original illustration 2, reference 2362Original colors & callouts · Select to enlarge

3. Apply adhesive to the floor panel seams and flanges and install the floor panel assembly. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B
