Rear Floor Panel

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,364 / 6,619HTML edition
← Chapter contentsProcedure contents

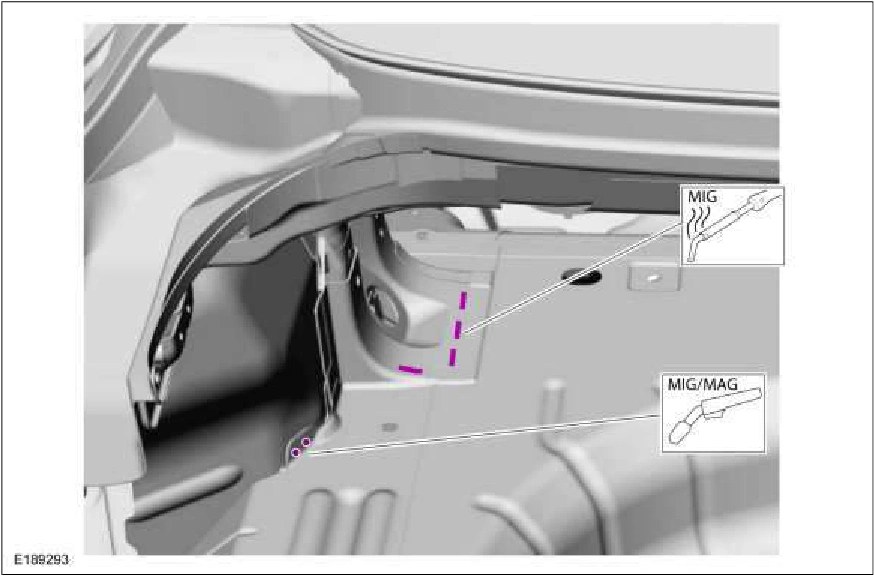

Rear Floor Panel — original illustration 1, reference 2364Original colors & callouts · Select to enlarge

6. NOTE: On both sides.

Weld the floor panel to the quarter panel extension. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

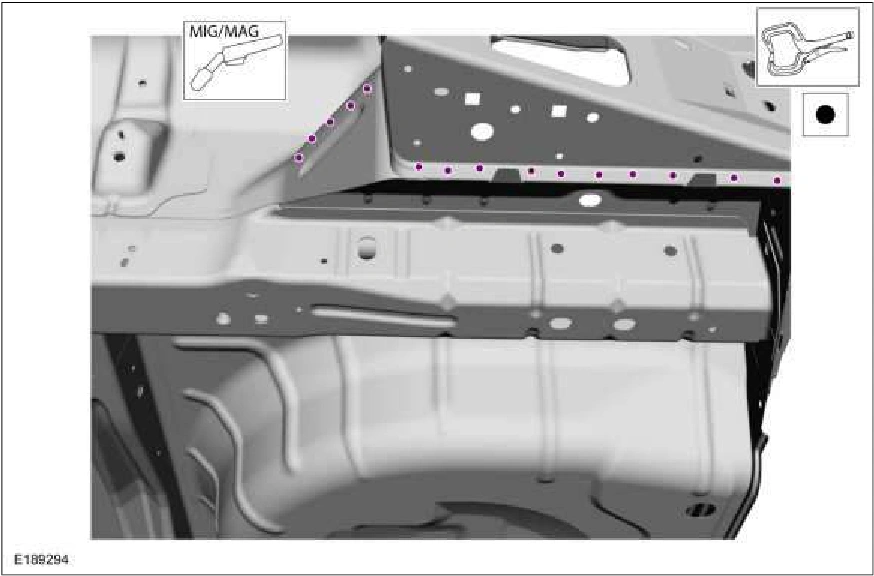

Rear Floor Panel — original illustration 2, reference 2364Original colors & callouts · Select to enlarge

7. NOTE: Convertible only.

Install and weld the underbody crossmember. Use the General Equipment: MIG/MAG Welding Equipment

Source reference 2364
