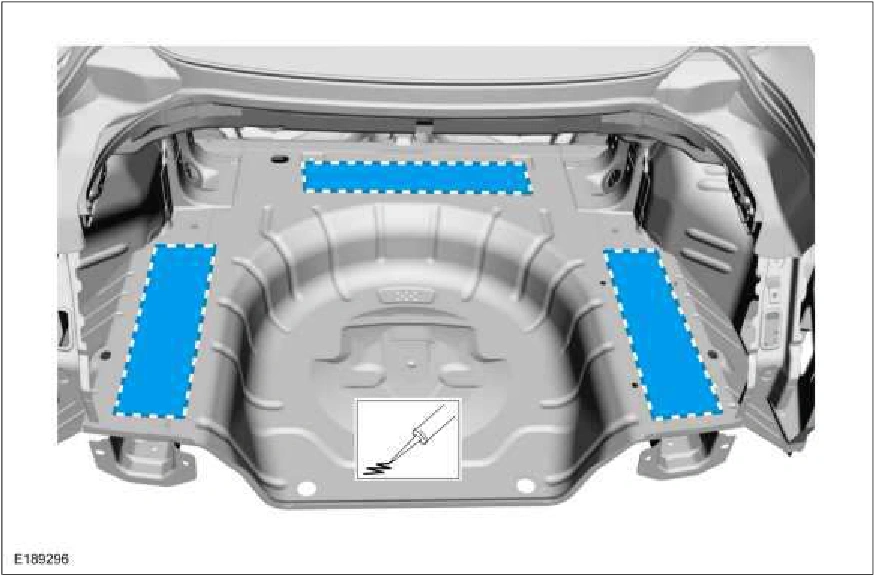

13. Apply NVH material (obtain locally) in original locations.
14. Install the following items:
1. As equipped Refer to: Evaporative Emission Canister (303-13A Evaporative Emissions - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Evaporative Emission Canister (303-13B Evaporative Emissions - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Evaporative Emission Canister (303-13C Evaporative Emissions - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
2. As equipped Refer to: Fuel Tank (310-01A Fuel Tank and Lines - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Fuel Tank (310-01B Fuel Tank and Lines - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Fuel Tank (310-01C Fuel Tank and Lines - 5.0L 32V Ti-VCT, Removal and Installation).
3. Refer to: Rear Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).
4. As equipped Refer to: Muffler and Tailpipe (309-00A Exhaust System - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00B Exhaust System - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
5. Refer to: Back Panel and Reinforcement (501-30 Rear End Sheet Metal Repairs, Removal and Installation).
6. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
7.
15. Reposition the carpeting and the wiring harness.
