Rear Floor Panel — 2016 workshop reference 2365

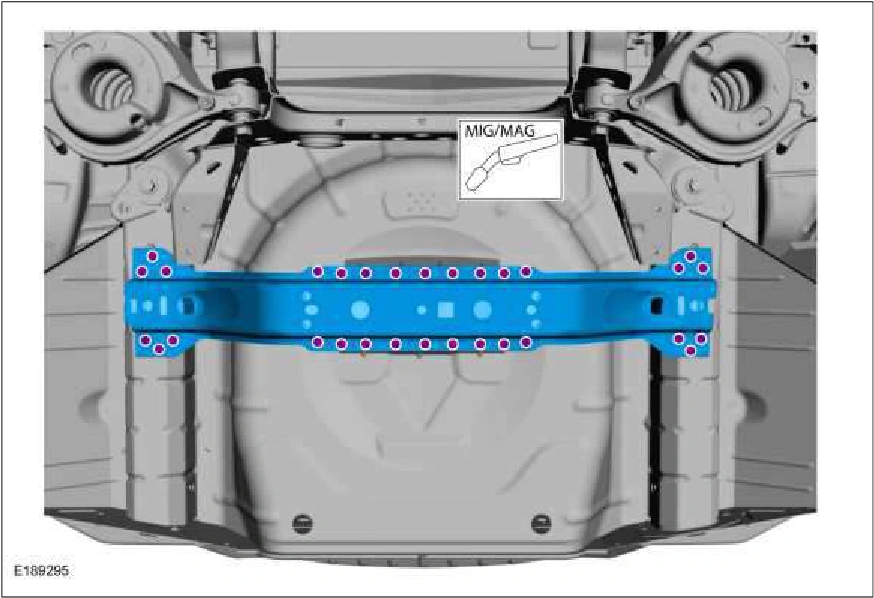

Rear Floor Panel — original illustration 1, reference 2365Original colors & callouts · Select to enlarge

8. NOTE: On both sides.

Apply NVH expanding foam to the foam carrier strip and install. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

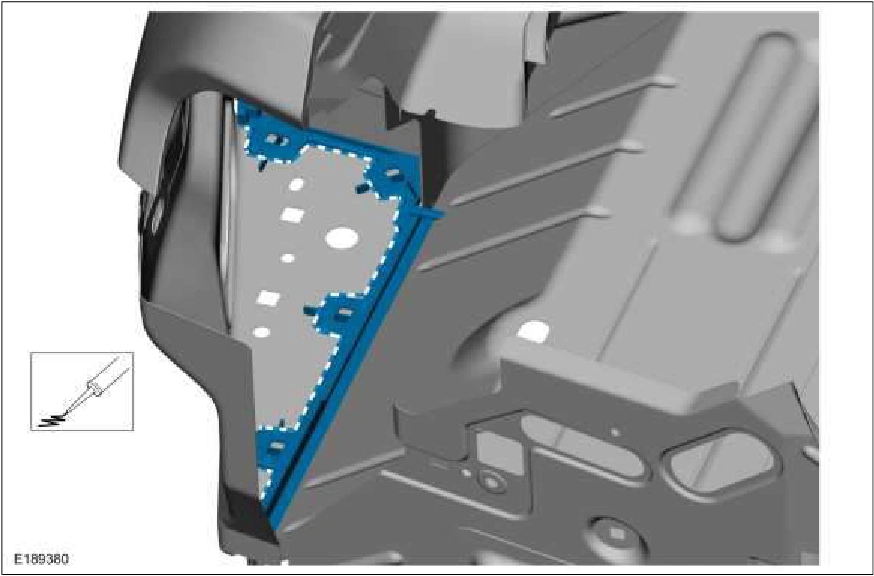

Rear Floor Panel — original illustration 2, reference 2365Original colors & callouts · Select to enlarge

9. Finish the repair area using typical metal finishing techniques.

10. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

11. Refinish using a Ford approved paint system.

12. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
