501-30 Rear End Sheet Metal Repairs 2016 Mustang

Removal and Installation Procedure revision date: 01/12/2015

Rear Side Member

Materials

Name

Specification

Seam Sealer TA-2-B

-

Removal

NOTICE: The rear side member(s) are constructed of Dual-Phase (DP) 800 steel and cannot be sectioned. Side member assembly must be replaced at factory joints.

1. If required, dimensionally restore vehicle to pre-accident condition. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

2. NOTE: Coupe

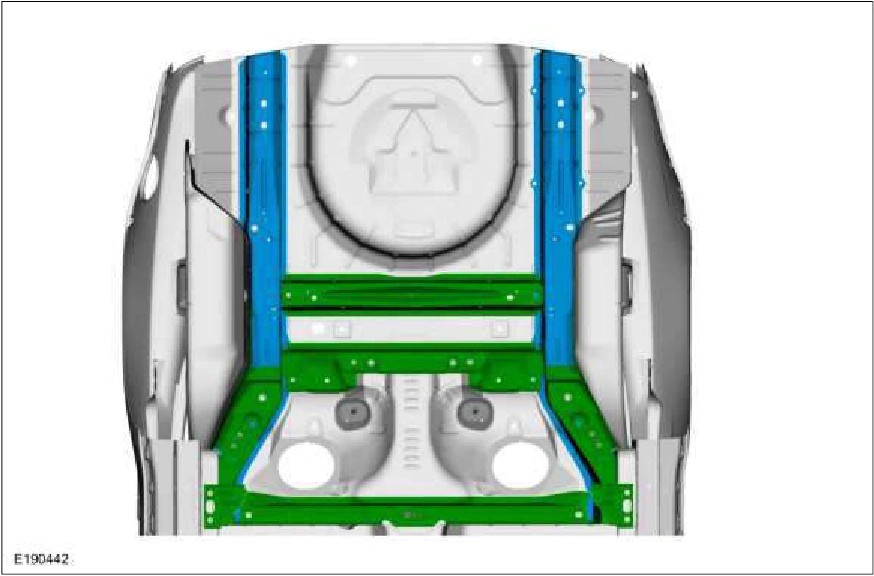

Overview Refer to: Vehicle Specific Body Construction (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

Rear Side Member — original illustration 1, reference 2367Original colors & callouts · Select to enlarge

3. NOTE: Convertible

Overview

Refer to: Vehicle Specific Body Construction (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
