2016 workshop · Body & Paint

Rear Floor Panel

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,361 / 6,619HTML edition
← Chapter contentsProcedure contents

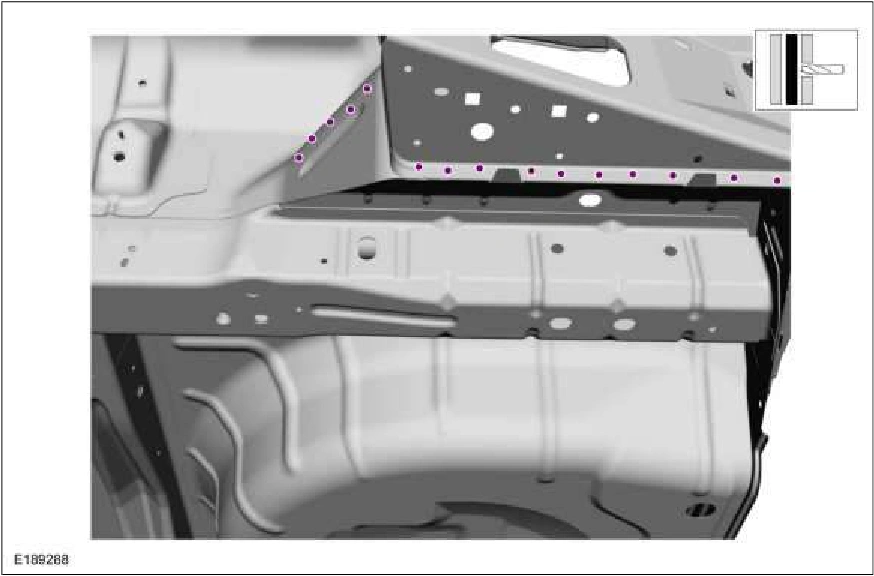

Rear Floor Panel — original illustration 1, reference 2361Original colors & callouts · Select to enlarge

10. NOTE: On both sides.

Remove the foam carrier strip between the floor panel and quarter panel extension. Use the General Equipment: Knife

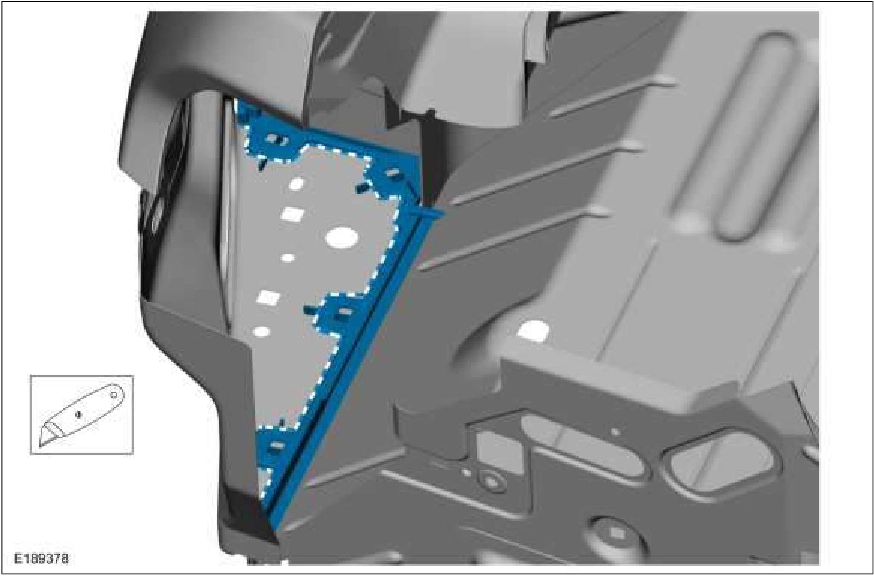

Rear Floor Panel — original illustration 2, reference 2361Original colors & callouts · Select to enlarge

11. NOTE: Heat may be applied, not to exceed 170°C to aid in softening the adhesive.

Remove the floor pan assembly. Use the General Equipment: Hot Air Gun
