Rear Floor Panel

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,360 / 6,619HTML edition
← Chapter contentsProcedure contents

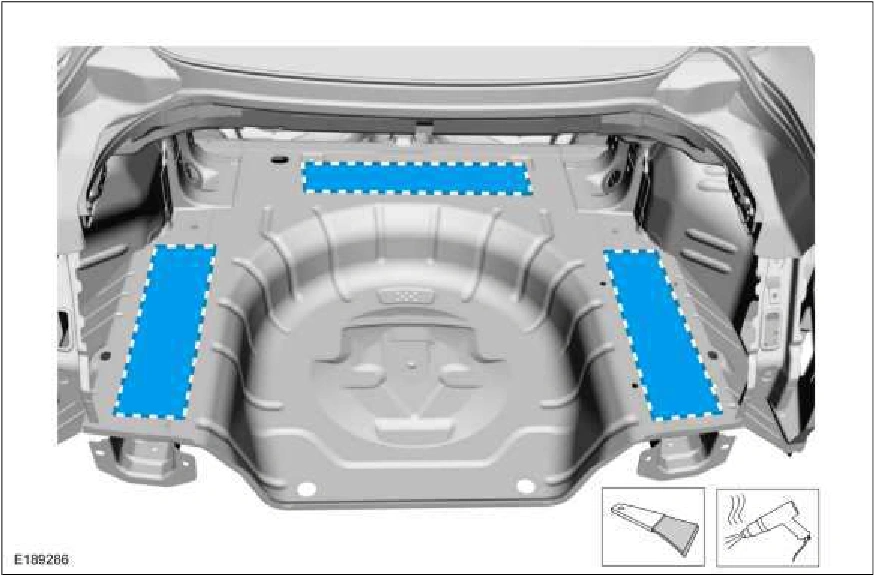

Rear Floor Panel — original illustration 1, reference 2360Original colors & callouts · Select to enlarge

8. Drill out the spot welds and grind off the brazed material at the floor panel seams. Use the General Equipment: Spot Weld Drill Bit

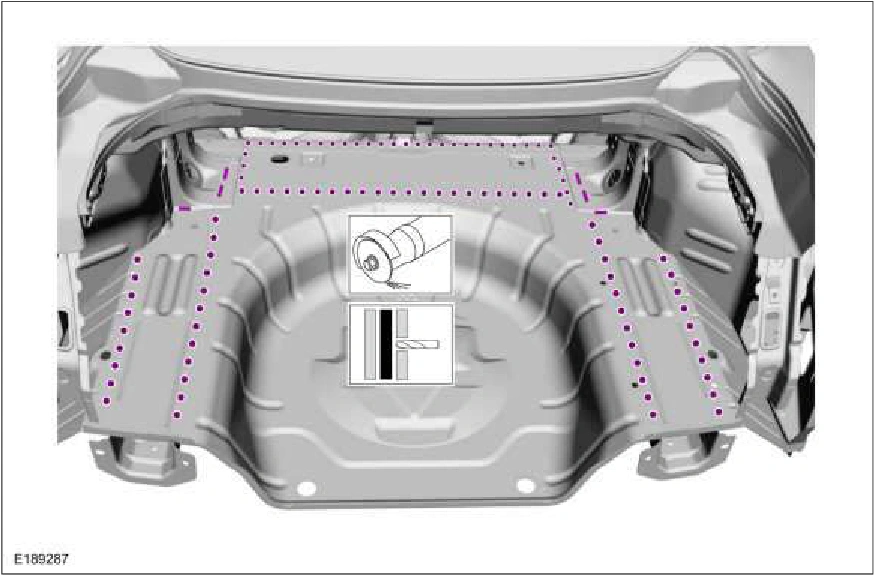

Rear Floor Panel — original illustration 2, reference 2360Original colors & callouts · Select to enlarge

9. NOTE: On both sides.

Drill out the spot welds on the lower extension of the quarter panel. Use the General Equipment: Spot Weld Drill Bit

Source reference 2360
