Quarter Panel - Convertible — 2016 workshop reference 2352

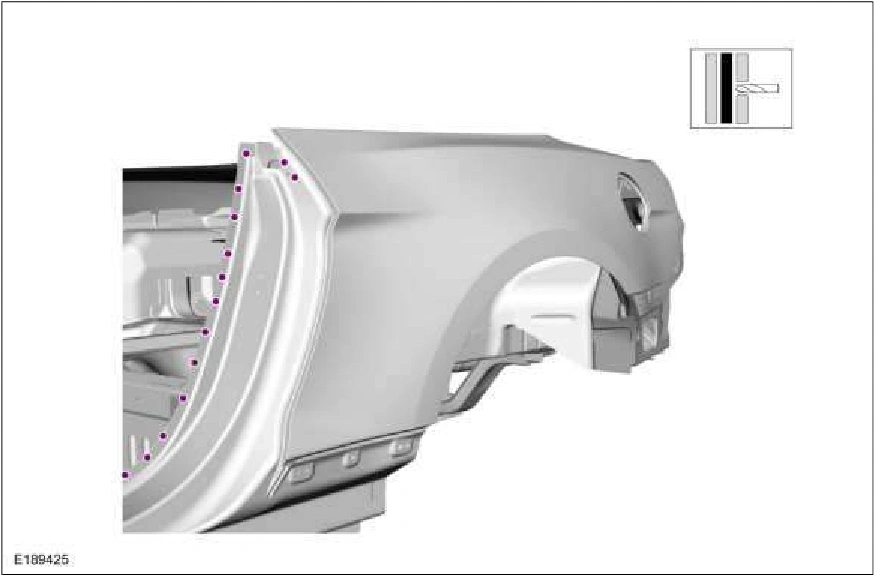

Quarter Panel - Convertible — original illustration 1, reference 2352Original colors & callouts · Select to enlarge

8. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit

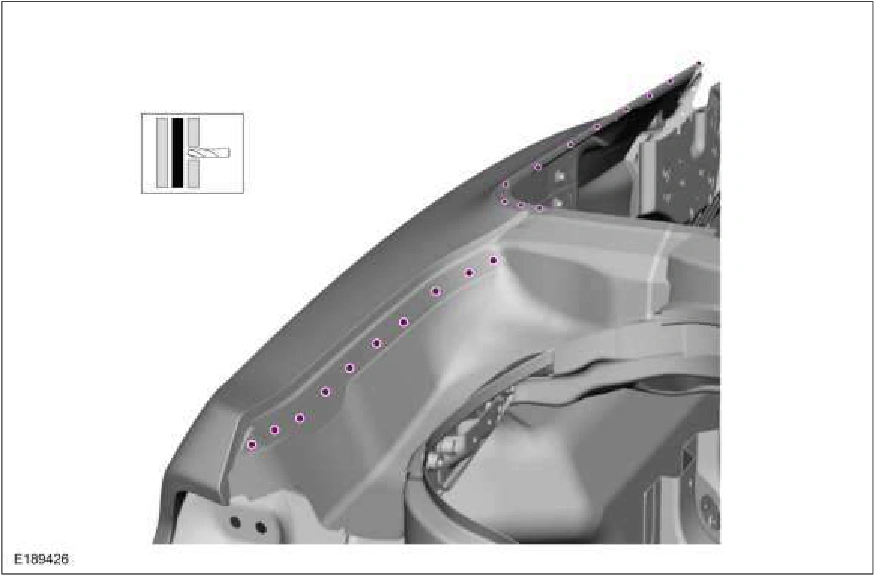

Quarter Panel - Convertible — original illustration 2, reference 2352Original colors & callouts · Select to enlarge

9. NOTE: Heat may be applied, not to exceed 170°C to aid in softening the adhesive and NVH foam.

Remove the quarter panel assembly. Use the General Equipment: Knife Use the General Equipment: Hot Air Gun
