Quarter Panel - Coupe — 2016 workshop reference 2349

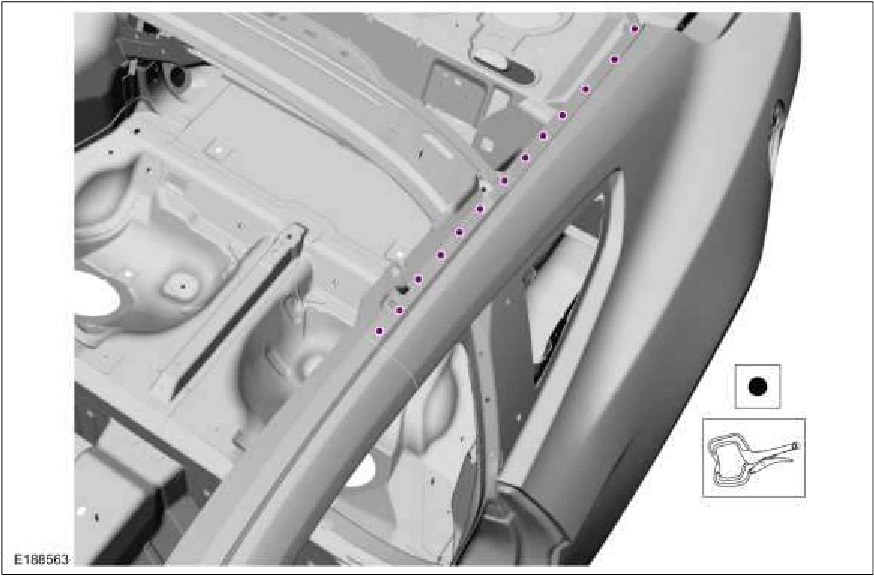

Quarter Panel - Coupe — original illustration 1, reference 2349Original colors & callouts · Select to enlarge

8. Metal finish the repair area(s) using typical metal finishing techniques.

9. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

10. Refinish using a Ford approved paint system.

11. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

12. Reposition the carpet and wiring harness.

13. Install the door striker.

14. Install the following items:

1. Refer to: Roof Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).

2. Refer to: Front Door (501-03 Body Closures, Removal and Installation).

3. Refer to: Luggage Compartment Lid (501-03 Body Closures, Removal and Installation).

4. LH side Refer to: Fuel Filler Door Assembly (501-03 Body Closures, Removal and Installation).

5. LH side as equipped. Refer to: Fuel Tank Filler Pipe (310-01A Fuel Tank and Lines - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Fuel Tank Filler Pipe (310-01B Fuel Tank and Lines - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Fuel Tank Filler Pipe (310-01C Fuel Tank and Lines - 5.0L 32V Ti-VCT, Removal and Installation).

6. Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

7. Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).

8. Refer to: Loadspace Trim Panel - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation).

9. Refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

10. Refer to: Rear Bumper (501-19 Bumpers, Removal and Installation).

11. Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).

Source reference 2349
