Quarter Panel - Coupe — 2016 workshop reference 2348

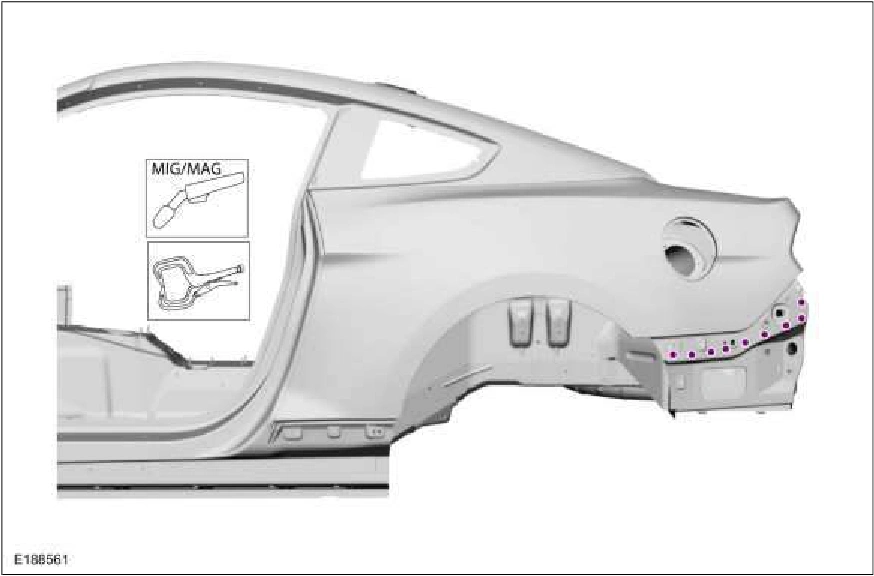

Quarter Panel - Coupe — original illustration 1, reference 2348Original colors & callouts · Select to enlarge

6. MIG weld the panel. Use the General Equipment: MIG/MAG Welding Equipment

Quarter Panel - Coupe — original illustration 2, reference 2348Original colors & callouts · Select to enlarge

7. Resistance spot weld the panel along the roof rail. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers
