Quarter Panel - Coupe — 2016 workshop reference 2345

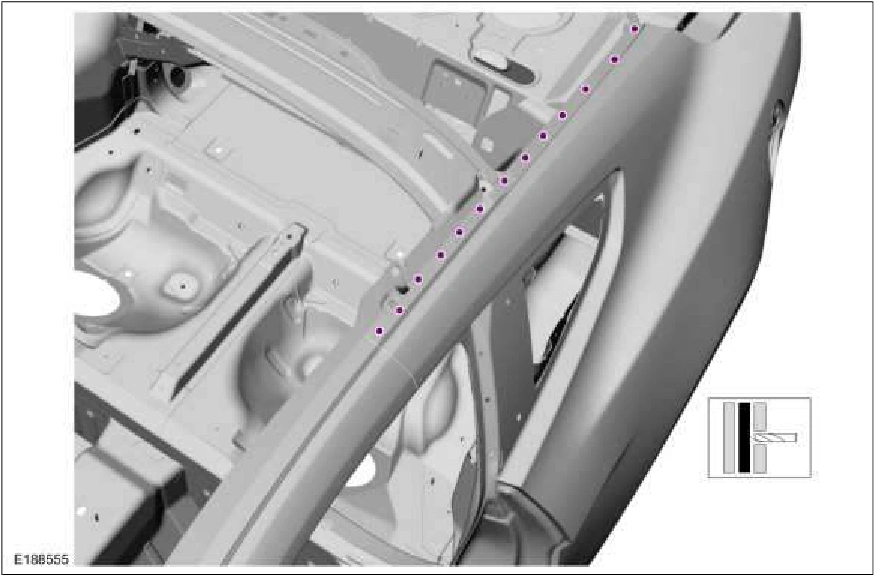

Quarter Panel - Coupe — original illustration 1, reference 2345Original colors & callouts · Select to enlarge

10. NOTE: Heat may be applied, not to exceed 170°C to aid in softening the adhesive and NVH foam.

Remove the quarter panel assembly. Use the General Equipment: Hot Air Gun

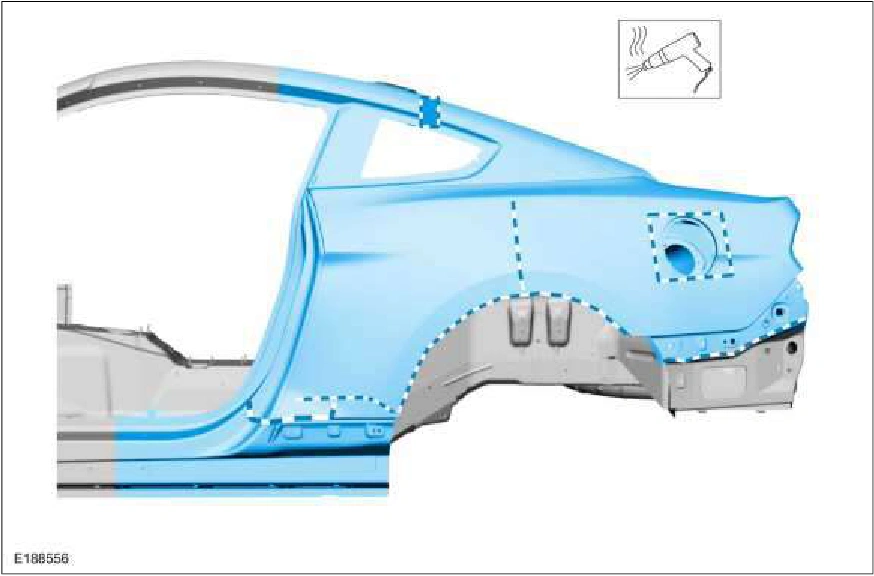

Quarter Panel - Coupe — original illustration 2, reference 2345Original colors & callouts · Select to enlarge

Installation

1. Drill holes in the replacement panel for plug welding. Use the General Equipment: 8 mm Drill Bit

Source reference 2345
