Quarter Panel - Coupe — 2016 workshop reference 2344

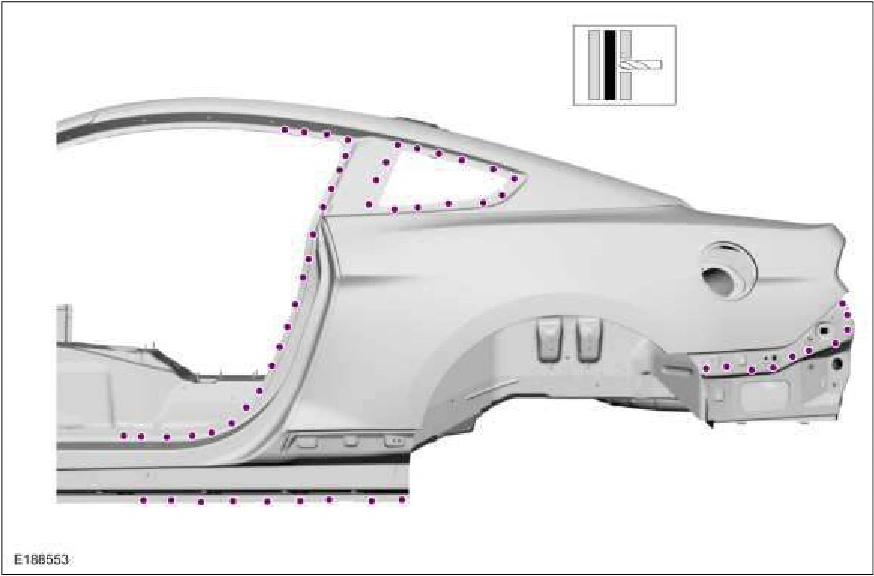

Quarter Panel - Coupe — original illustration 1, reference 2344Original colors & callouts · Select to enlarge

8. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit

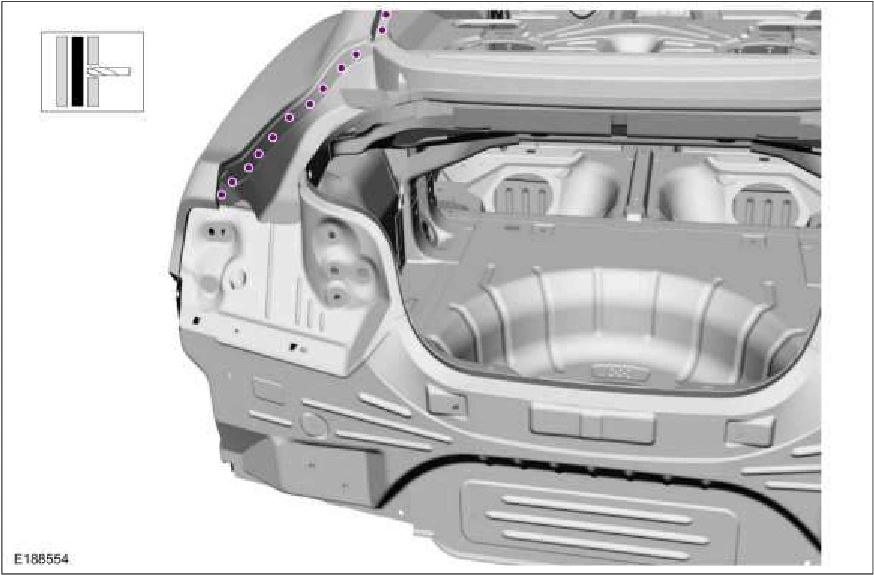

Quarter Panel - Coupe — original illustration 2, reference 2344Original colors & callouts · Select to enlarge

9. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit
