Back Panel and Reinforcement — 2016 workshop reference 2341

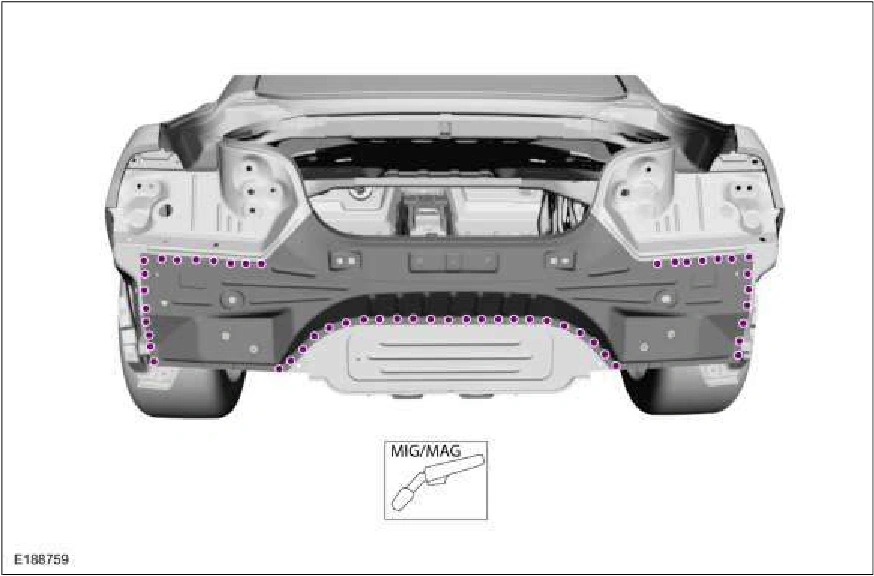

Back Panel and Reinforcement — original illustration 1, reference 2341Original colors & callouts · Select to enlarge

10. Metal finish the repair area using typical metal finishing procedures.

11. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

12. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

13. Refinish using a Ford approved paint system.

14. Reposition the wiring harness and carpet.

15. Install the following items:

1. Refer to: Rear Bumper (501-19 Bumpers, Removal and Installation).

2. Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).
