Back Panel and Reinforcement — 2016 workshop reference 2338

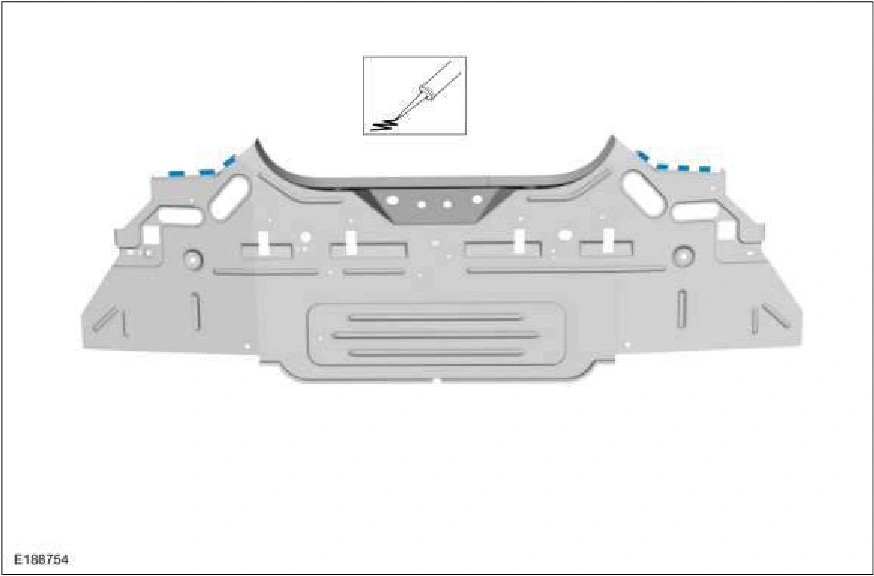

Back Panel and Reinforcement — original illustration 1, reference 2338Original colors & callouts · Select to enlarge

4. Install the back panel reinforcement and spot weld. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

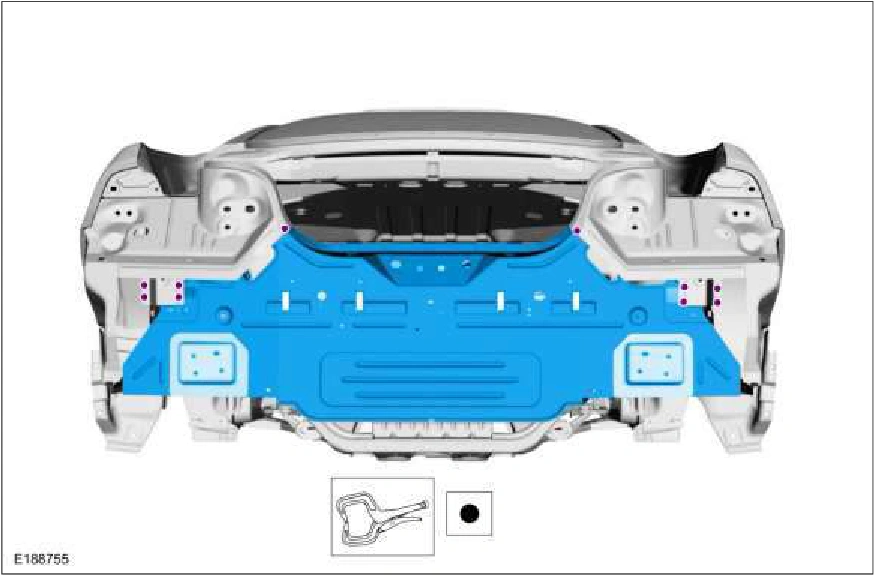

Back Panel and Reinforcement — original illustration 2, reference 2338Original colors & callouts · Select to enlarge

5. MIG weld the panel. Use the General Equipment: MIG/MAG Welding Equipment
