Back Panel and Reinforcement — 2016 workshop reference 2335

Back Panel and Reinforcement — original illustration 1, reference 2335Original colors & callouts · Select to enlarge

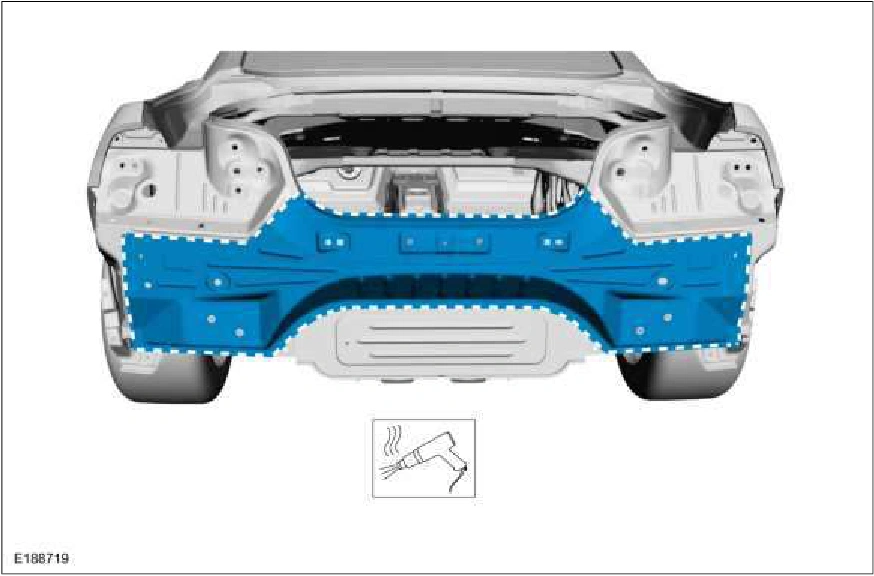

6. NOTE: Heat may be applied, not to exceed 170°C to aid in softening the adhesive .

Remove the back panel assembly. Use the General Equipment: Hot Air Gun

Back Panel and Reinforcement — original illustration 2, reference 2335Original colors & callouts · Select to enlarge

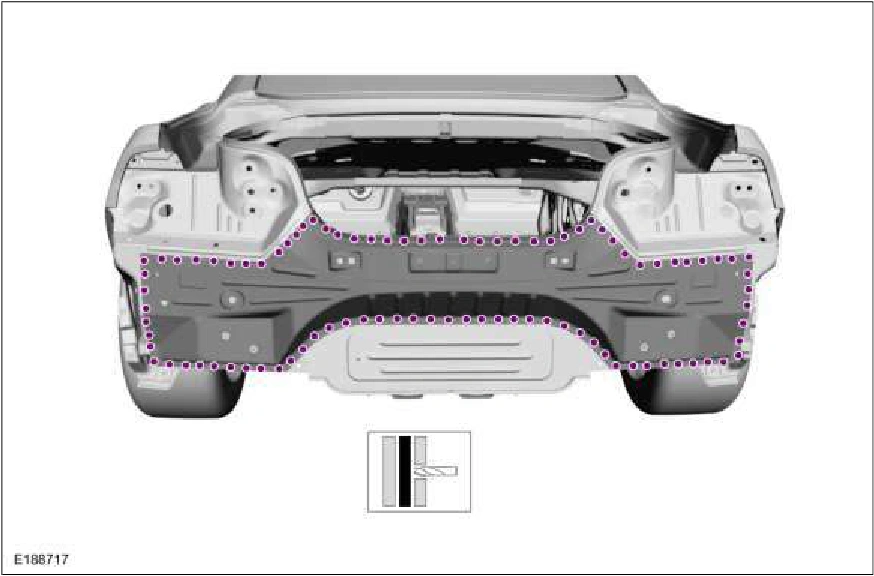

7. Drill out the spot welds from the back panel reinforcement. Use the General Equipment: Spot Weld Drill Bit
