2016 workshop · Body & Paint

Back Panel and Reinforcement

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,337 / 6,619HTML edition
← Chapter contentsProcedure contents

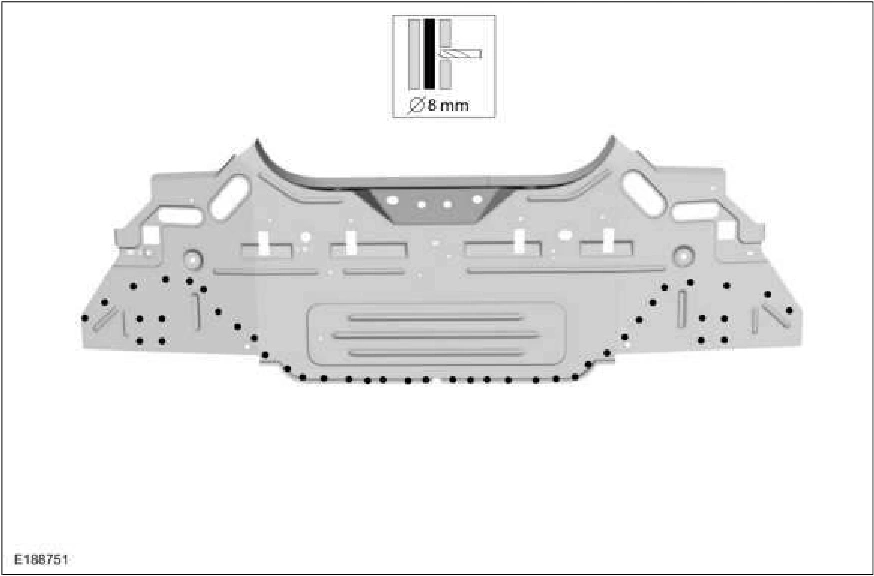

Back Panel and Reinforcement — original illustration 1, reference 2337Original colors & callouts · Select to enlarge

2. NOTE: Make sure the surface is clean and free of foreign material.

Apply metal bonding adhesive to the floor pan flange. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B

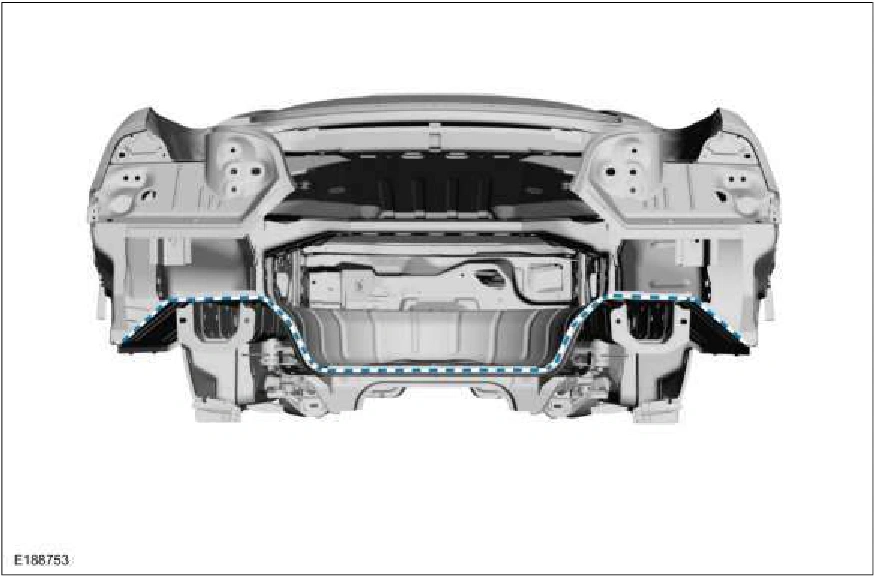

Back Panel and Reinforcement — original illustration 2, reference 2337Original colors & callouts · Select to enlarge

3. NOTE: Make sure that the component is clean and free of foreign material and lubricant.

Apply metal bonding adhesive to the back panel reinforcement upper flanges. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B
