Back Panel and Reinforcement — 2016 workshop reference 2340

Back Panel and Reinforcement — original illustration 1, reference 2340Original colors & callouts · Select to enlarge

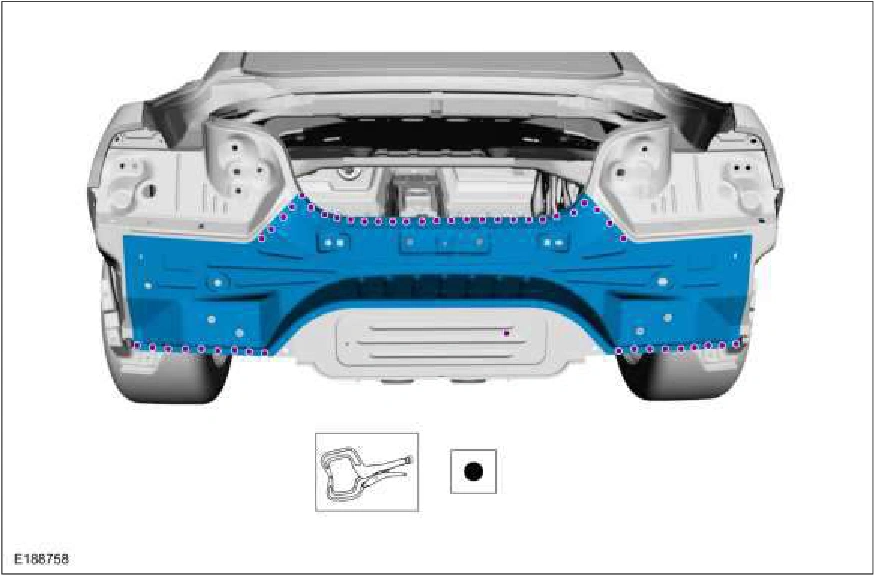

8. Install the back panel and spot weld. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

Back Panel and Reinforcement — original illustration 2, reference 2340Original colors & callouts · Select to enlarge

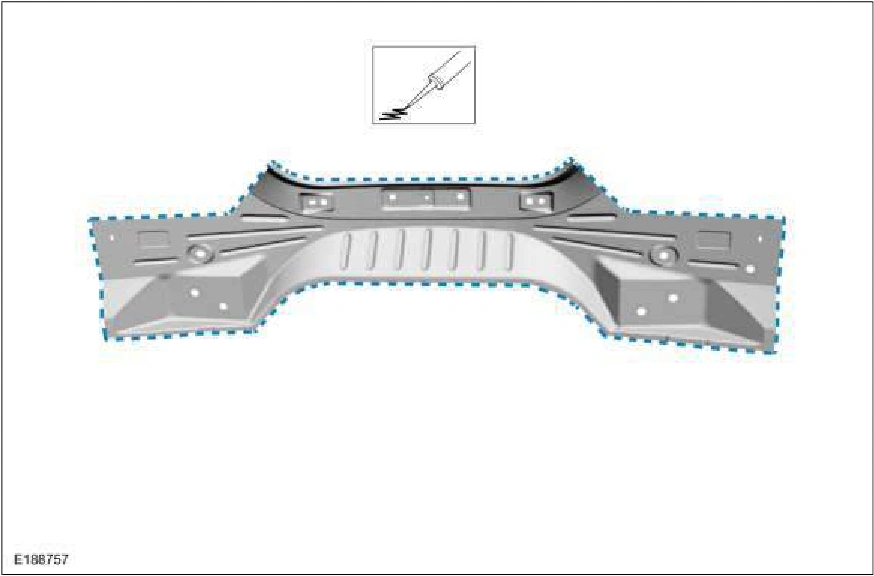

9. MIG weld the panel. Use the General Equipment: MIG/MAG Welding Equipment

Source reference 2340

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
