Quarter Panel - Coupe — 2016 workshop reference 2343

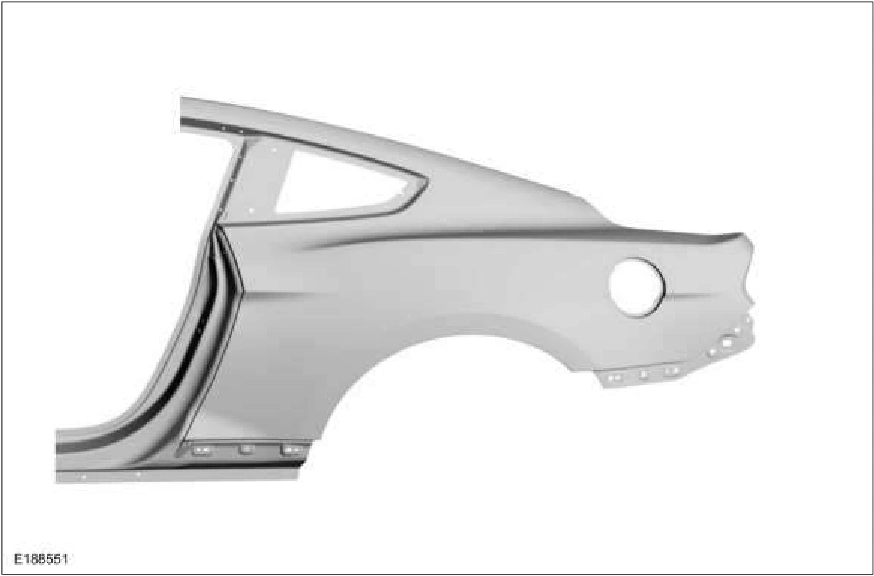

5. Available service part.

Quarter Panel - Coupe — original illustration 1, reference 2343Original colors & callouts · Select to enlarge

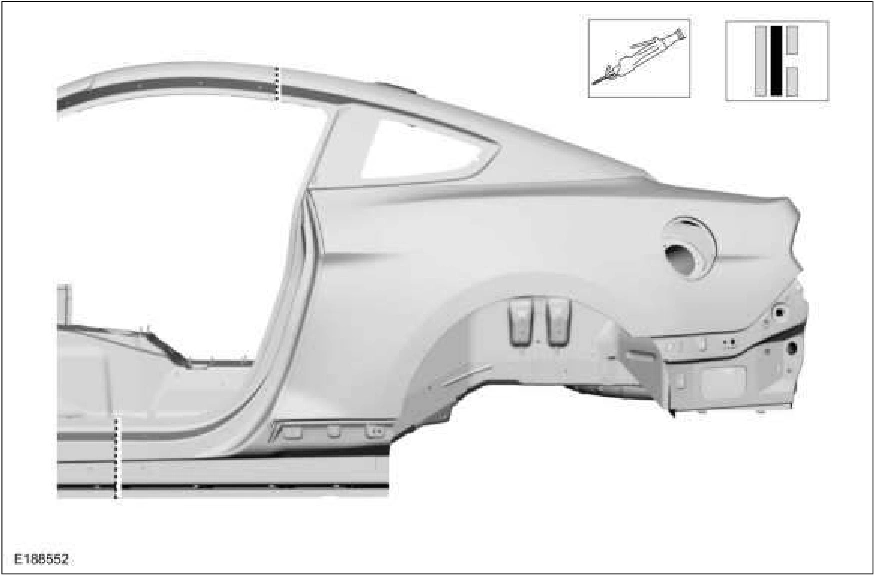

6. NOTICE: Cut through outer panel only.

Cut the quarter panel flange at the rocker and roof rail. Use the General Equipment: Air Body Saw

Quarter Panel - Coupe — original illustration 2, reference 2343Original colors & callouts · Select to enlarge

7. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit
