Quarter Panel - Coupe — 2016 workshop reference 2346

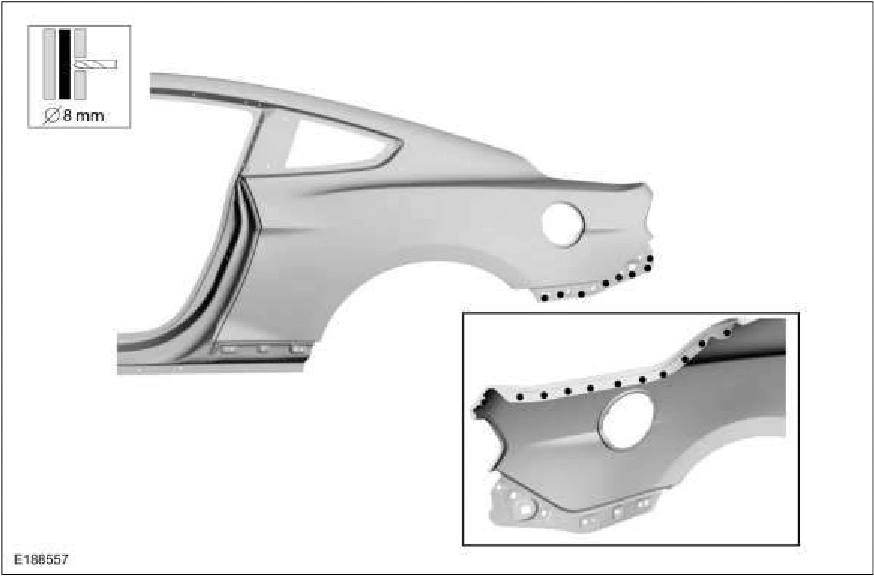

Quarter Panel - Coupe — original illustration 1, reference 2346Original colors & callouts · Select to enlarge

2. Apply NVH expanding foam and metal bonding adhesive to indicated areas. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121 Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B

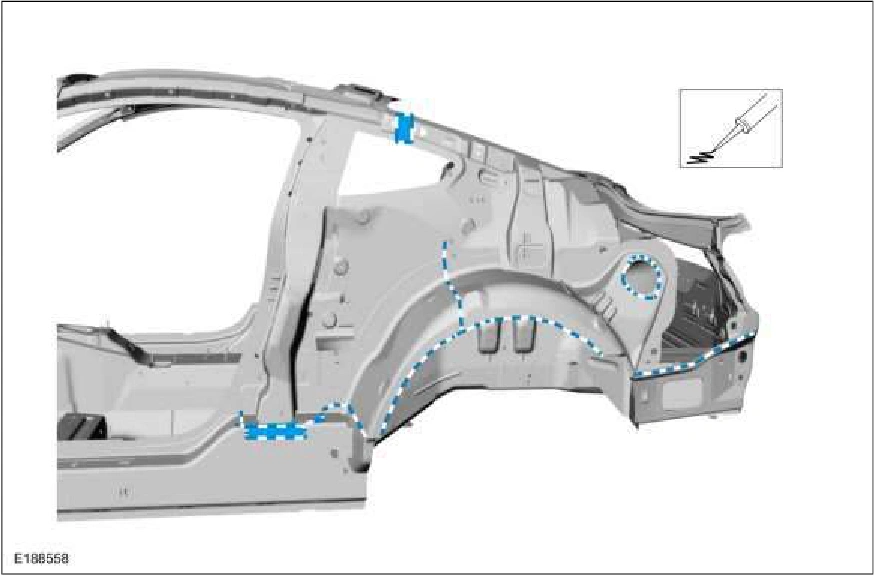

Quarter Panel - Coupe — original illustration 2, reference 2346Original colors & callouts · Select to enlarge

3. Install the quarter panel and seam weld. Use the General Equipment: Locking Pliers Use the General Equipment: MIG/MAG Welding Equipment
