Quarter Panel - Coupe — 2016 workshop reference 2347

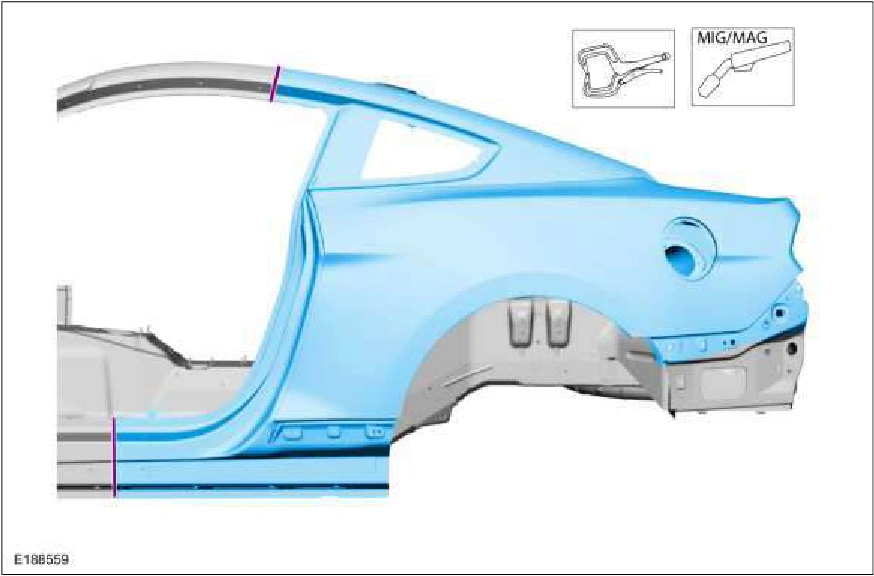

Quarter Panel - Coupe — original illustration 1, reference 2347Original colors & callouts · Select to enlarge

4. Resistance spot weld the panel. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers

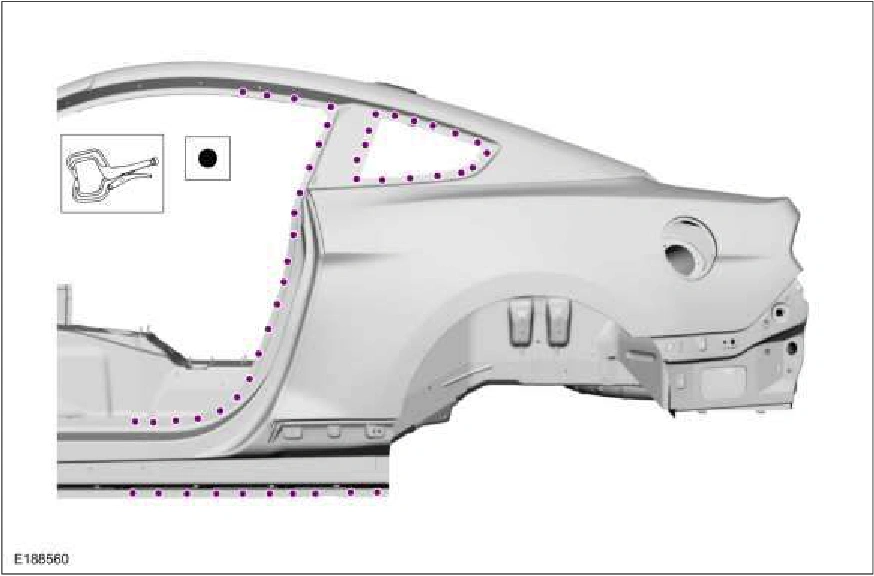

Quarter Panel - Coupe — original illustration 2, reference 2347Original colors & callouts · Select to enlarge

5. MIG weld the panel. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers
