Back Panel and Reinforcement — 2016 workshop reference 2339

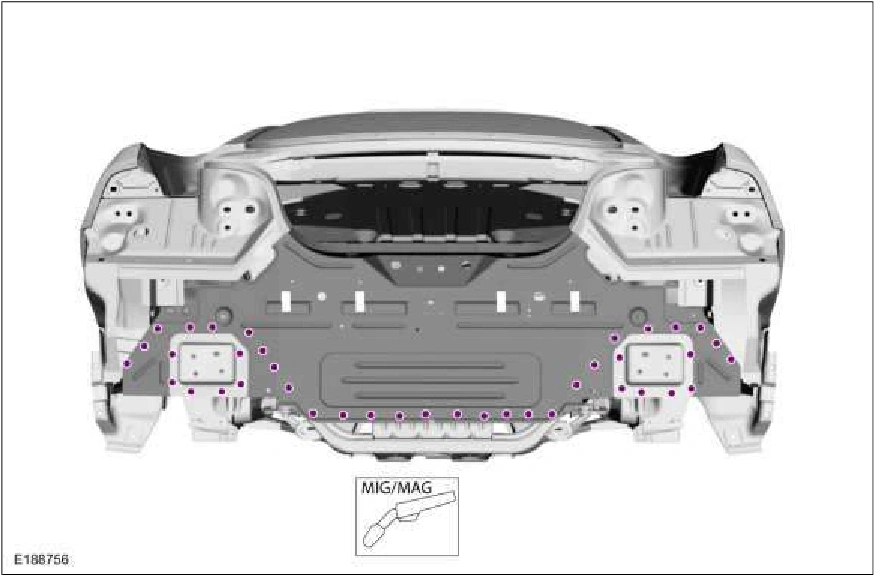

Back Panel and Reinforcement — original illustration 1, reference 2339Original colors & callouts · Select to enlarge

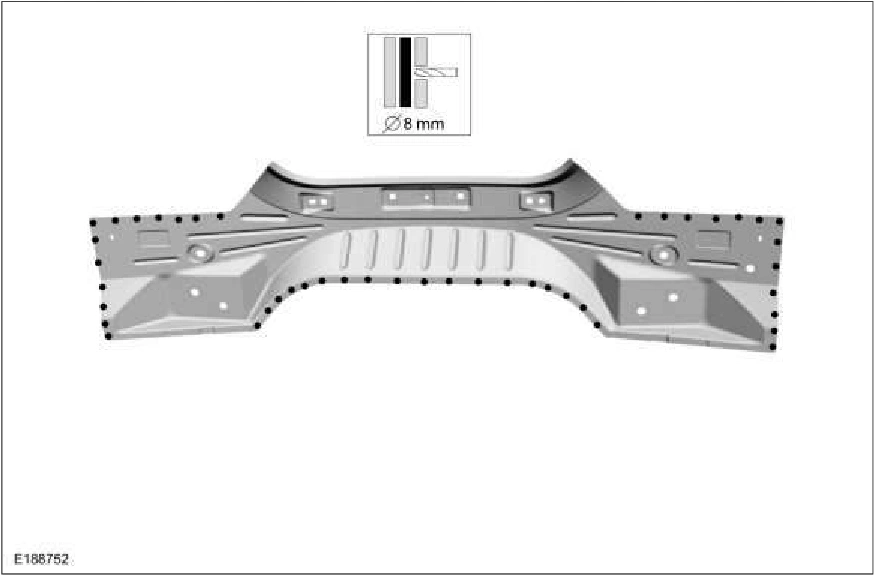

6. Drill holes in the back panel for plug welding. Use the General Equipment: 8 mm Drill Bit

Back Panel and Reinforcement — original illustration 2, reference 2339Original colors & callouts · Select to enlarge

7. NOTE: Make sure that the component is clean, free of foreign material and lubricant.

Apply metal bonding adhesive to the back panel. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B

Source reference 2339
