Back Panel and Reinforcement — 2016 workshop reference 2336

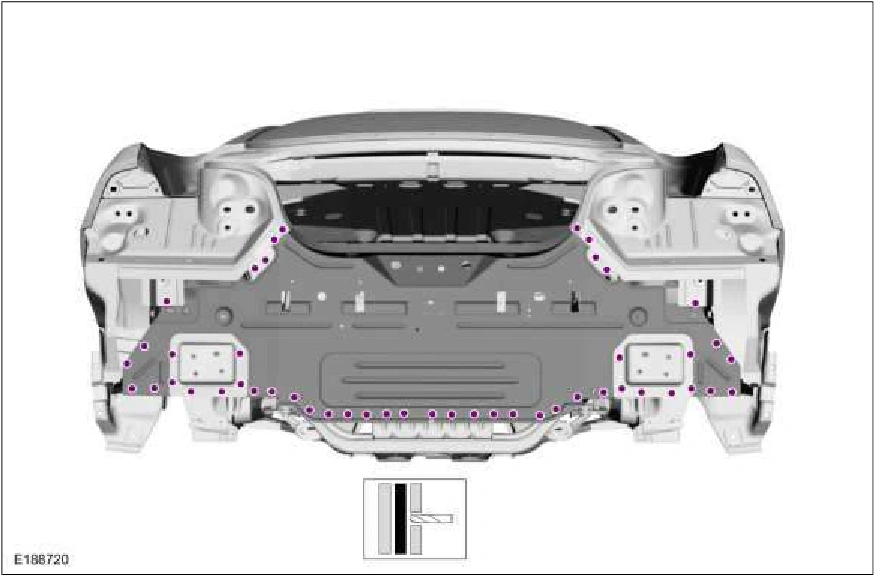

Back Panel and Reinforcement — original illustration 1, reference 2336Original colors & callouts · Select to enlarge

8. NOTE: Heat may be applied, not to exceed 170°C to aid in softening the adhesive.

Remove the back panel reinforcement. Use the General Equipment: Hot Air Gun

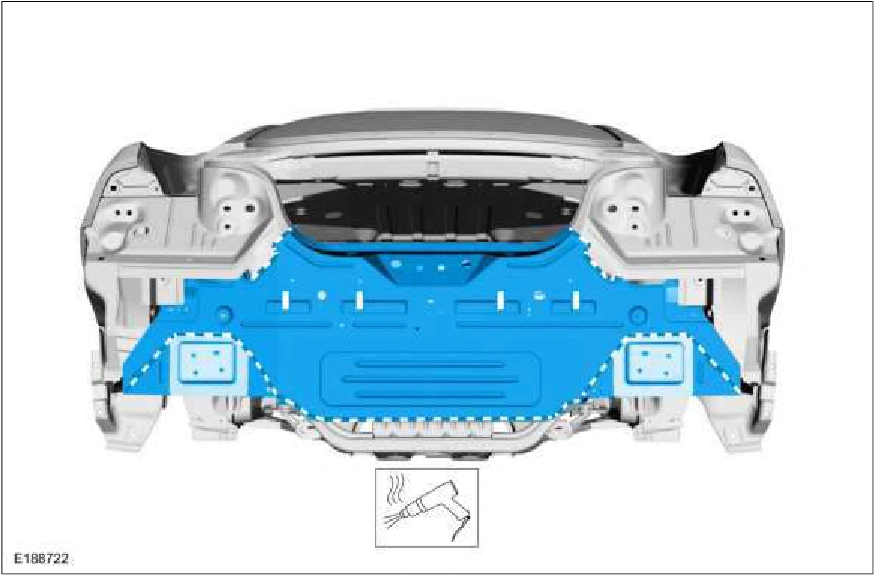

Back Panel and Reinforcement — original illustration 2, reference 2336Original colors & callouts · Select to enlarge

Installation

1. Drill holes in the replacement back panel reinforcement for plug welding. Use the General Equipment: 8 mm Drill Bit

Source reference 2336
