Water Drain Panel — 2016 workshop reference 2378

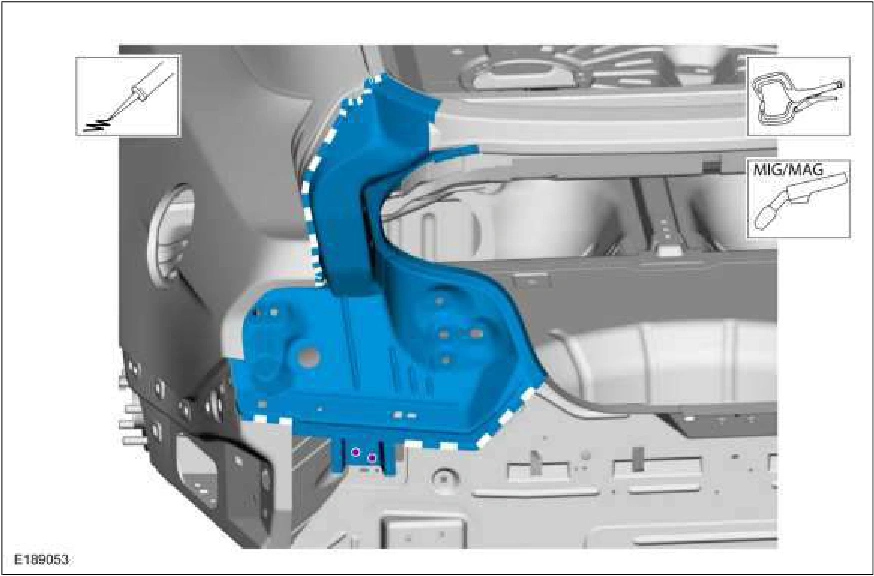

Water Drain Panel — original illustration 1, reference 2378Original colors & callouts · Select to enlarge

5. Weld the drain panel to the quarter panel and package tray. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers

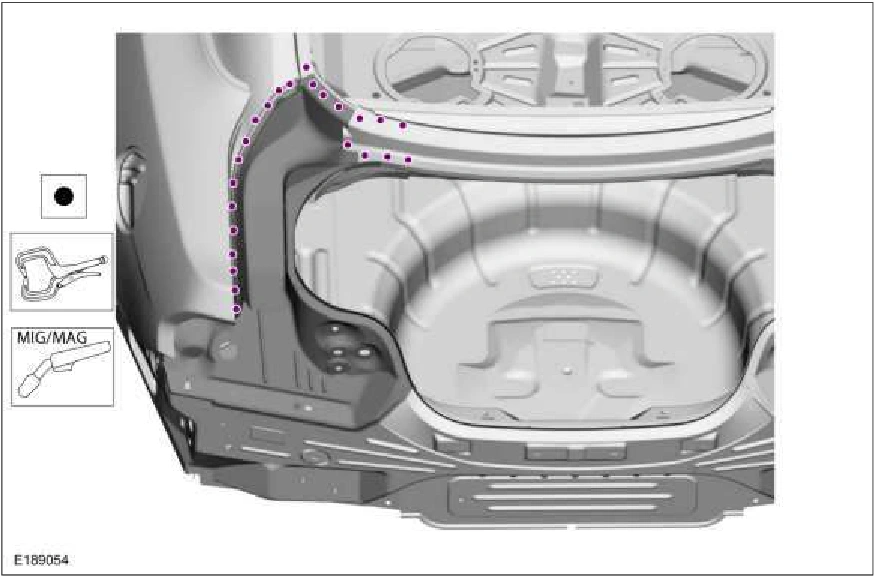

Water Drain Panel — original illustration 2, reference 2378Original colors & callouts · Select to enlarge

6. Metal finish as required using typical metal finishing techniques.

7. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

8. Refinish using a Ford approved paint system.

9. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

Source reference 2378
