Water Drain Panel — 2016 workshop reference 2375

Water Drain Panel — original illustration 1, reference 2375Original colors & callouts · Select to enlarge

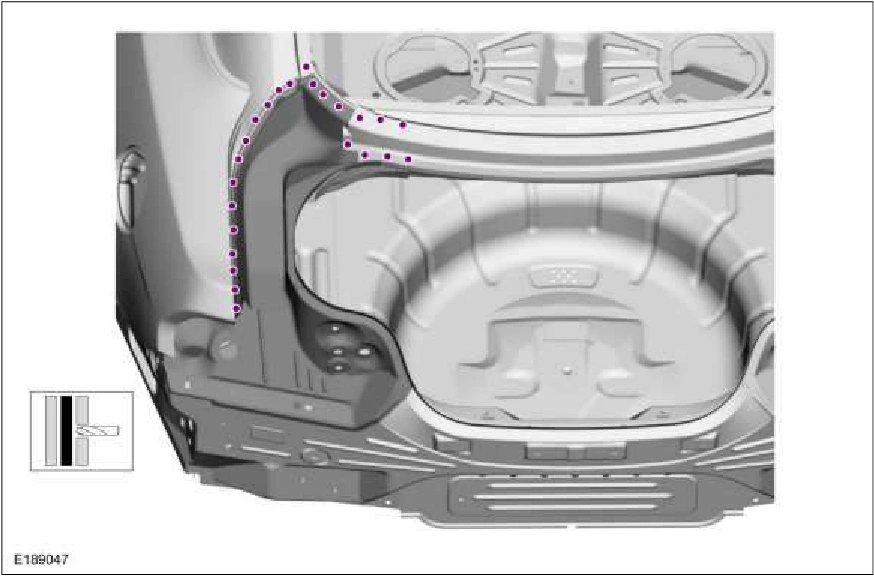

5. Drill out the spot welds on the lamp mounting panel. Use the General Equipment: Spot Weld Drill Bit

Water Drain Panel — original illustration 2, reference 2375Original colors & callouts · Select to enlarge

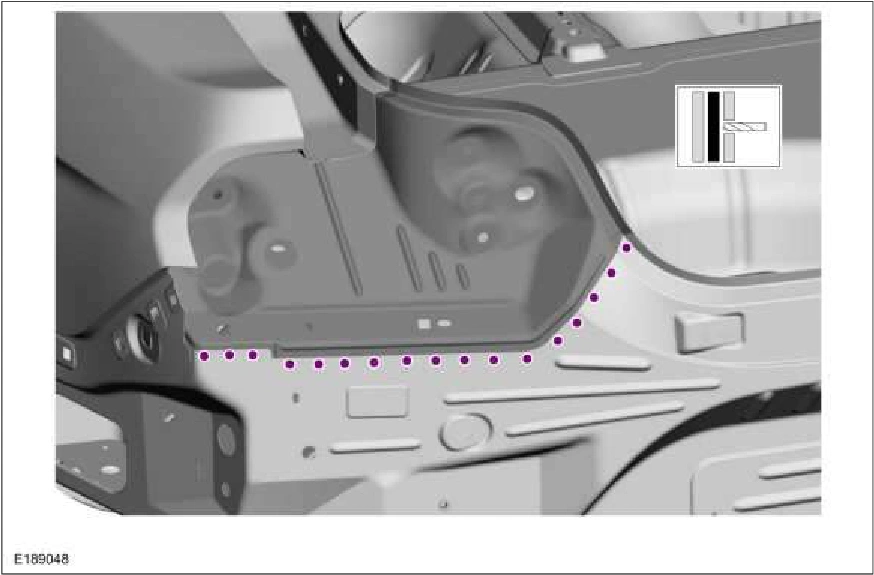

6. Cut the NVH expanding foam between the quarter panel and rear lamp mounting panel. Use the General Equipment: Knife
