2016 workshop · Body & Paint

Water Drain Panel

501-30 Rear End Sheet Metal Repairs

2016 MustangReference 2,377 / 6,619HTML edition
← Chapter contentsProcedure contents

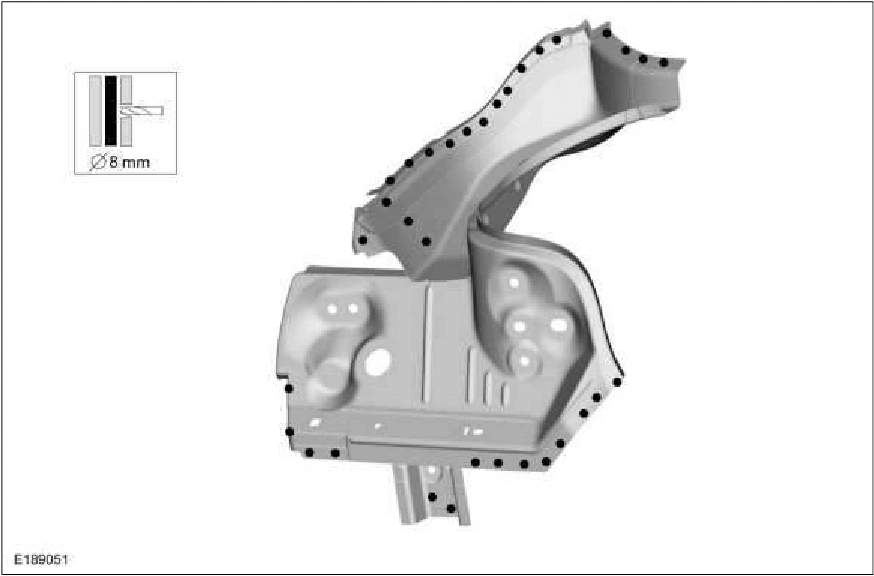

Water Drain Panel — original illustration 1, reference 2377Original colors & callouts · Select to enlarge

3. Apply NVH expanding foam the quarter panel. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

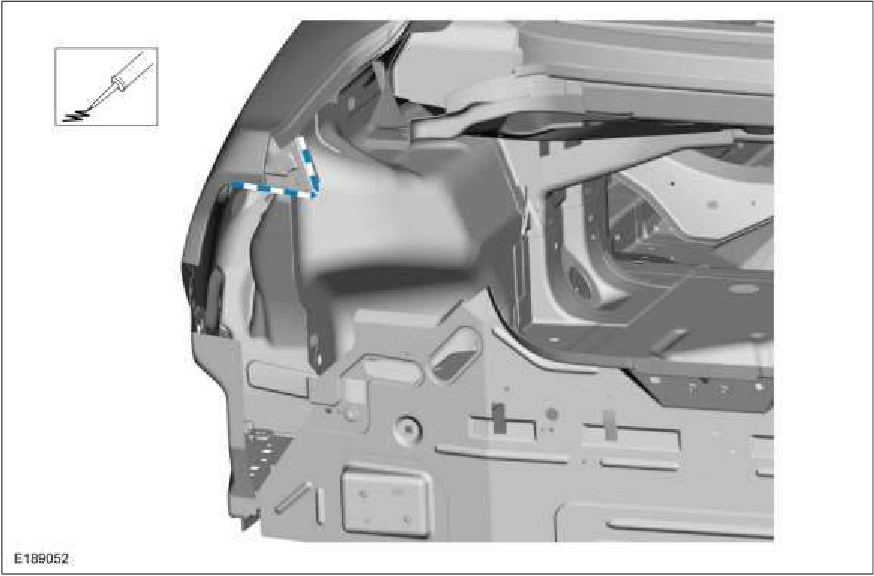

Water Drain Panel — original illustration 2, reference 2377Original colors & callouts · Select to enlarge

4. Apply metal bonding adhesive and weld the reinforcement of the panel assembly. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers Material : Plastic Bonding Adhesive / TA-9
